Manufacturer Part #
PIC18F57Q43-I/6LX
PIC series Microcontroller IC 8-Bit 64MHz 128KB (128K x 8) FLASH 48-VQFN (6x6)
Microchip PIC18F57Q43-I/6LX - Product Specification
Shipping Information:
ECCN:
PCN Information:
Microchip has released a new Document for the PIC18F27/47/57Q43 Silicon Errata and Data Sheet Clarifications of devices.Notification Status: FinalDescription of Change:Added silicon errata items 1.3.4 through 1.3.11 and data sheet clarifications 2.1 and 2.2.Impacts to Data Sheet: NoneReason for Change:To Improve ProductivityChange Implementation Status: CompleteDate Document Changes Effective: 02 Sep 2024
Microchip has released a new Datasheet for the PIC18F27/47/57Q43 28/40/44/48-Pin, Low-Power, High-Performance Microcontroller with XLP Technology Data Sheet of devices. Notification Status: FinalDescription of Change:Update IPD Electrical Specifications D200 through D208; minor editorial corrections.Impacts to Data Sheet: See above details. Change Implementation Status: CompleteDate Document Changes Effective: 10 Apr 2024
Microchip has released a new Errata for the PIC18F27/47/57Q43 Silicon Errata and Data Sheet Clarifications of devices. Notification Status: FinalDescription of Change:1) Added silicon revision C0 and silicon errata item 1.3.3.2) Updated data sheet revision to revision G and removed previous clarification issues.Impacts to Data Sheet: NoneReason for Change: To Improve ProductivityChange Implementation Status: CompleteEstimated First Ship Date: 30 March 2023
Microchip has released a new Errata for the PIC18F27/47/57Q43 Silicon Errata and Data Sheet Clarifications of devices. Notification Status: FinalDescription of Change:1) Added silicon revision C0 and silicon errata item 1.3.3.2) Updated data sheet revision to revision G and removed previous clarification issues.Impacts to Data Sheet: NoneReason for Change: To Improve ProductivityChange Implementation Status: CompleteEstimated First Ship Date: 30 March 2023
Microchip has released a new Datasheet for the PIC18F27/47/57Q43 28/40/44/48-Pin, Low-Power, High-Performance Microcontroller with XLP Technology of devices.Description of Change:Added DC and AC Characteristics Graphs and Tables; Updated Tables 47-8, 47-15, 47-16 and 47-17; minor editorial corrections.
Microchip has released a new Product Documents for the PIC18F27/47/57Q43 Family Silicon Errata and Data Sheet Clarifications of devices. Notification Status: FinalDescription of Change: Added silicon errata items 1.1.2, 1.6.1, 17.1 and data sheet clarifications 2.1 and 2.2Impacts to Data Sheet: NoneReason for Change: To Improve ProductivityChange Implementation Status: CompleteDate Document Changes Effective: 24 March 2022NOTE: Please be advised that this is a change to the document only the product has not been changed.
Part Status:
Microchip PIC18F57Q43-I/6LX - Technical Attributes
Family Name: | PIC18F |
Core Processor: | PIC |
Program Memory Type: | Flash |
Flash Size (Bytes): | 128kB |
RAM Size: | 8kB |
Speed: | 64MHz |
No of I/O Lines: | 44 |
InterfaceType / Connectivity: | I2C/SPI/UART |
Peripherals: | BOR/DMA/POR/PWM |
Number Of Timers: | 8 |
Supply Voltage: | 1.8V to 5.5V |
Operating Temperature: | -40°C to +85°C |
On-Chip ADC: | 43-chx12-bit |
On-Chip DAC: | 1-chx8-bit |
Watchdog Timers: | 1 |

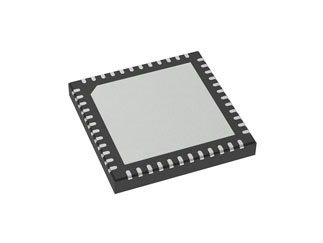

Package Style: | VQFN-48 |
Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
61 per Tube
Package Style:
VQFN-48
Mounting Method:
Surface Mount
