Microchip | PIC18LF6520-I/PT

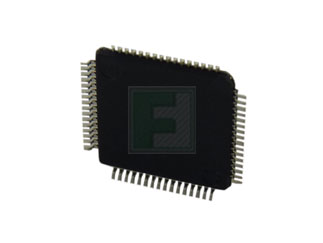

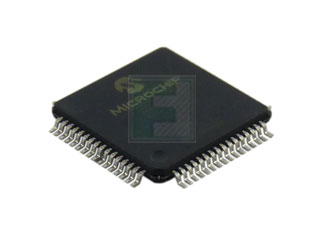

The PIC18LF6520-I/PT is a part of PIC18LF series 8-bit Microcontroller. It has 32 Kbytes of Flash Program Memory in a 64-Pin TQFP package. It has an industrial temperature range from -40°C to +85°C.

PIC18F6520 is the natural extension of the PIC18F452 device, providing more RAM, more I/Os, a second serial communication port  on top of the same peripheral set. It is also upward software compatible with PIC16 and PIC17 devices with a pin-out that is functionally compatible with the PIC17C76X family of OTP devices.

Features:

• High-Performance RISC CPU:
  • C compiler optimized architecture/instruction set:
    • Source code compatible with the PIC16 and PIC17 instruction sets
  • Linear program memory addressing to 128 Kbytes
  • Linear data memory addressing to 3840 bytes
  • 1 Kbyte of data EEPROM
• External Memory Interface:
  • Address capability of up to 2 Mbytes
  • 16-bit interface
• Peripheral Features:
  • High current sink/source 25 mA/25 mA
  • Four external interrupt pins
  • Timer0 module: 8-bit/16-bit timer/counter
  • Timer1 module: 16-bit timer/counter
  • Timer2 module: 8-bit timer/counter
  • Timer3 module: 16-bit timer/counter
  • Timer4 module: 8-bit timer/counter
• Analog Features:
  • 10-bit, up to 16-channel Analog-to-Digital Converter (A/D):
    • Conversion available during Sleep
  • Programmable 16-level Low-Voltage Detection (LVD) module:
    • Supports interrupt on Low-Voltage Detection
• Special Microcontroller Features:
  • 100,000 erase/write cycle Enhanced Flash program memory typical
  • 1,000,000 erase/write cycle Data EEPROM memory typical
  • 1 second programming time
  • Flash/Data EEPROM Retention: > 40 years
  • Self-reprogrammable under software control
• CMOS Technology:
  • Low-power, high-speed Flash technology
  • Fully static design
  • Wide operating voltage range (2.0 V to 5.5 V)
  • Industrial and Extended temperature ranges
