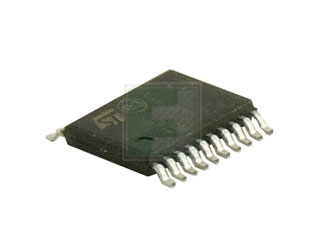

STMicroelectronics | STM8S103F3P3

The STM8S103F3P3 is a 8-bit Microcontroller, offers 8-Kbytes flash program memory plus integrated true data EEPROM. This provides performance, robustness, and reduced system cost.

This device performance and robustness are ensured by advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.

Features:

• Core
  • 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
  • Extended instruction set
• Memories
  • Program memory: 8 Kbytes Flash; data retention 20 years at 55 °C after 10 kcycles
  • Data memory: 640 bytes true data EEPROM; endurance 300 kcycles
  • RAM: 1 Kbytes
• Clock, reset and supply management
  • 2.95 to 5.5 V operating voltage
  • Flexible clock control, 4 master clock sources:
    • Low power crystal resonator oscillator
    • External clock input
    • Internal,user-trimmable 16 MHz RC
    • Internal low power 128 kHz RC
  • Clock security system with clock monitor
  • Power management:
    • Low power modes (wait, active-halt, halt)
    • Switch-off peripheral clocks individually
  • Permanently active,low consumption power-on and power-down reset
• Interrupt management
  • Nested interrupt controller with 32 interrupts
  • Up to 27 external interrupts on 6 vectors
• Timers
  • Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
  • 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)
  • 8-bit basic timer with 8-bit prescaler
  • Auto wakeup timer
  • Window watchdog, independent watchdog timers
• Communications interfaces
  • UART with clock output for synchronous operation, Smartcard, IrDA, LIN master mode
  • SPI interface up to 8 Mbit/s
  • I2C interface up to 400 Kbit/s
• Analog to digital converter (ADC)
  • 10-bit, ±1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog
• I/Os
  • Up to 28 I/Os on a 32-pin package including 21 high sink outputs
  • Highly robust I/O design, immune against current injection
  • Development support
  • Embedded single wire interface module (SWIM) for fast on-chip programming and non intrusive debugging
• Unique ID
  • 96-bit unique ID key for each device
