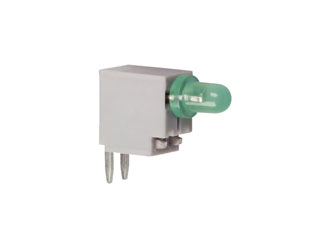

Lumex | SSF-LXH4RAGD

Manufacturer Part #

SSF-LXH4RAGD

Green 3 mm 60° Diffused 30 mcd 2.1 V Through Hole LED Fault Indicator - T-1

ECAD Model:
Mfr. Name: Lumex
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Lumex SSF-LXH4RAGD - Technical Attributes
Attributes Table
No of LEDs: 1
Color: Green
Lens Type: Diffused
Forward Voltage: 2.1V
Forward (Drive) Current: 20mA
Intensity: 30mcd
Viewing Angle: 60°
Wavelength: 565nm
Rated Power: 105mW
Operating Temp Range: -40°C to +85°C
Storage Temperature Range: -40°C to +85°C
Dimension: H  7.6mm x L  13.87mm x W  4.5mm
Package Style:  T-1
Mounting Method: Through Hole
Features & Applications

The SSF-LXH4RAGD is a 585 nm green color diffused lens through hole LED fault indicator with an intensity of 30 mcd.

Features:

  • Peak forward current : 150 mA
  • Steady current : 25 mA
  • Power dissipation : 105 mV
  • Operating storage temp : -40 ° to +85 °C
  • Solder temp : +260 °C
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
5000
Multiple Of:
100
Total
$2,175.00
USD
Quantity
Unit Price
1
$0.485
50
$0.475
150
$0.46
300
$0.455
1,000+
$0.435
