Manufacturer Part #
SSI-LXR1612ID

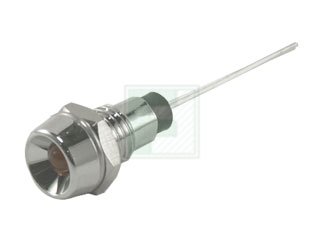

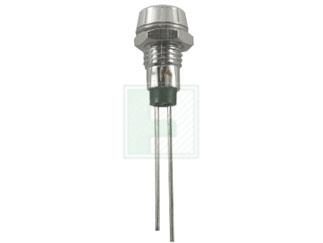

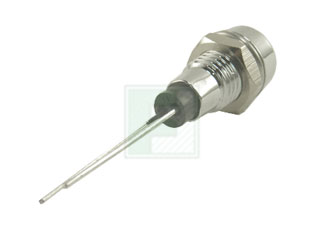

Red 3 mm 60° Diffused 30 mcd 2 V Through Hole LED Panel Indicator - T-1
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Lumex | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag Package Style:T-1 Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Lumex SSI-LXR1612ID - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SSI-LXR1612ID&field4=Lumex&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ssi-lxr1612id-lumex-7319395
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SSI-LXR1612ID&field4=Lumex&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--leds/ssi-lxr1612id-lumex-7319395
Lumex SSI-LXR1612ID - Technical Attributes
Attributes Table
| No of LEDs: | 1 |
| Color: | Red |
| Lens Type: | Diffused |
| Forward Voltage: | 2V |
| Forward (Drive) Current: | 20mA |
| Intensity: | 30mcd |
| Viewing Angle: | 60° |
| Wavelength: | 635nm |
| Rated Power: | 105mW |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -40°C to +85°C |
| Dimension: | H 14.2mm x D 8mm |
| Package Style: | T-1 |
| Mounting Method: | Panel Mount |
Features & Applications
The SSI-LXR1612ID is a 2 V 3 mm Red Diffused 30 mcd LED/Panel Indicators Through Hole QuasarBrite LEDs.
Features:
- State-of-the-Art, LED Technology
- Choice of Colors and Lens Finishes
- Bi-Color Styles Optional
- Insulated Lead Lenghts Optional
- Easy installation through panel
Parameters:
- Peak Forward Current : 150 mA
- Steady Current : 30 mA
- Power Dissipation : 105 mW
- Derate from 25°C : -1.6 mW/°C
- Operating temperature : -40 to + 85°C
- Peak wave length : 635 nm
- Forward voltage : 2.0 V to 2.5 V
- Reverse Voltage : 5.0 V
- Emitted color : Red
- Epoxy Lens Finish : Red Diffused
Applications:
- Front Panel Status Indicators
- Alarm/Warning Indicators
- Front Panel Circuit Fault Indicators
- Instrument Control Panels
- Medical Diagnostics Indicators
- Industrial Automation Control Panels
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
1,000+
$1.20
Product Variant Information section
Available Packaging
Package Qty:
1000 per Bag
Package Style:
T-1
Mounting Method:
Panel Mount
