Manufacturer Part #
OP800A

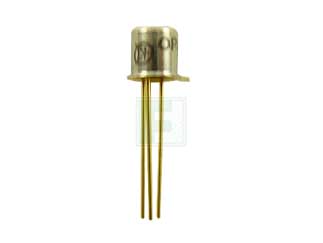

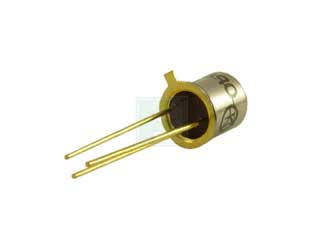

OP800 Series 890 nm Viewing Angle 25° 50 mA NPN Silicon Phototransistor - TO-18
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TT Electronics - Optek Technology | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag Package Style:TO-18 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
TT Electronics - Optek Technology OP800A - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=OP800A&field4=TT Electronics - Optek Technology&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--photodetectors-infrared-detectors/op800a-tt-electronics-optek-technology-1507805
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=OP800A&field4=TT Electronics - Optek Technology&field18=https://p1na.futureelectronics.com/p/semiconductors--optoelectronics--photodetectors-infrared-detectors/op800a-tt-electronics-optek-technology-1507805
TT Electronics - Optek Technology OP800A - Technical Attributes
| Wavelength: | 890nm |
| Bandwidth: | 650nm to 1000nm |
| Angle of Half Sensitivity: | ±12° |
| Power Dissipation: | 250mW |
| CE Voltage-Max: | 30V |
| Collector Current @ 25C: | 50mA |
| Package Style: | TO-18 |
| Mounting Method: | Through Hole |
Features & Applications
The OP800A is a part of OP80 series NPN silicon phototransistor. It has a storage temperature ranging from -65°C to +150°C and its available in TO-18 package.
The OP800 Series device consist of a NPN silicon phototransistor mounted in a hermetically sealed package. The narrow receiving angle provides excellent on-axis coupling. TO-18 package offer high power dissipation and hostile environment operation. The base lead is bonded to enable conventional transistor biasing.
Features:
- Narrow receiving angle
- Suitable for applications from 400nm to 1100
- Variety of sensitivity ranges
- TO-18 hermetically sealed package
- Enhanced temperature range
- Base lead connection
Applications:
- Industrial and commercial electronics
- Distance sensing
- Harsh environment
- Photointerrupters
View the available OP80 series of NPN silicon phototransistor
Available Packaging
Package Qty:
1000 per Bag
Package Style:
TO-18
Mounting Method:
Through Hole
