TE Connectivity



The MTA 100 series from TE Connectivity provides both wireto- board and wire-to-wire connections based on Insulation Displacement Contact (IDC) technology.

Mass termination of wires supports low applied cost, as it greatly reduces the labor required for almost any cable or harness assembly.

These connectors have a 2.54mm centerline spacing while allowing for up to 28 positions. The housings feature both closed-end and feed-through connector styles with locking ramps, both with and without polarizing tabs. The housings are available in various color options.

MTA 100 connectors offer multiple quality and reliability benefits:

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Features
  • Audible latch for connection feedback on posted housings
  • Wire feed-through for daisy-chaining
  • Tin or gold plating
  • Terminates 28 to 22 AWG wire
  • UL recognized
  • 5A current rating
  • 250V AC voltage rating
  • Operating-temperature range: -55°C to 105°C
Applications
  • Household appliances
  • Industrial machinery and controls
  • Personal healthcare devices



FTM NA SideNav SubscribeTile EN
FTM NA Issue7-2019 SideNav Download

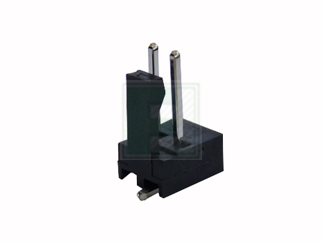

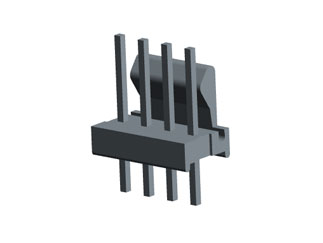

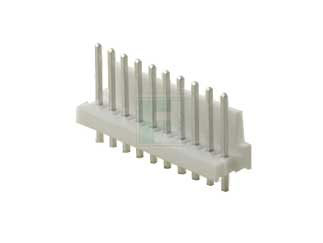

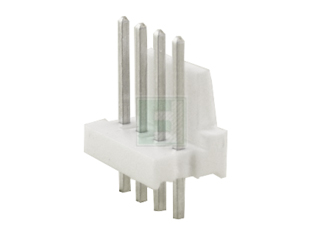

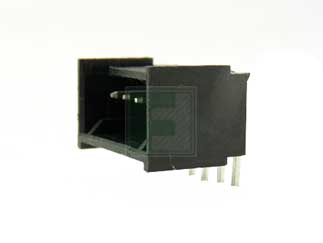

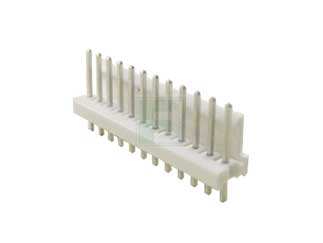

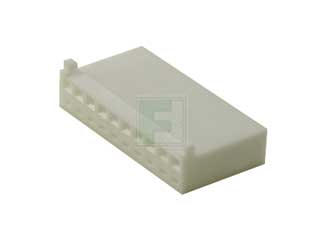

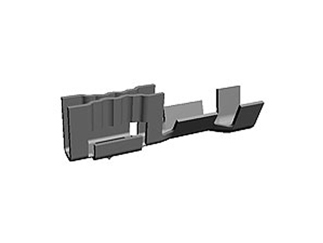

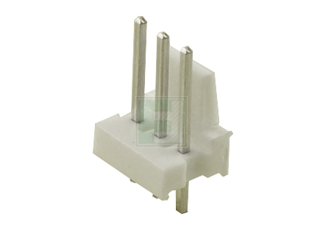

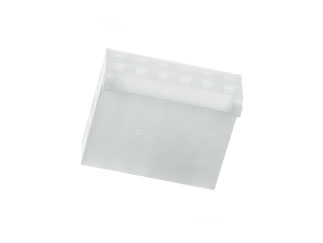

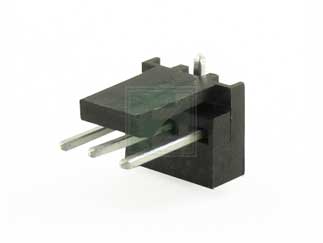

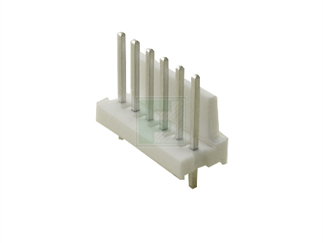

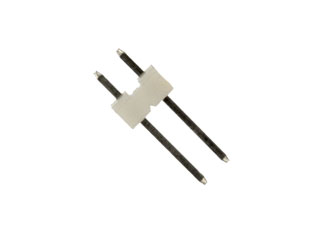

Featured Products
