Manufacturer Part #
3-520150-2

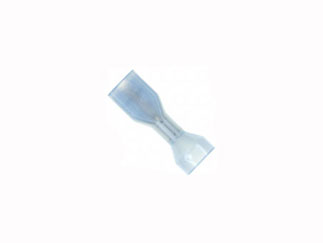

Ultra Fast 16-14 AWG Straight Fully Insulated Receptacle Assembly
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Reel Mounting Method:Cable Mount | ||||||||||
| Date Code: | 2444 | ||||||||||
Product Specification Section
TE Connectivity 3-520150-2 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-520150-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/es/p/interconnect--pin-and-socket-connectors--crimp-terminals/3-520150-2-te-connectivity-7387780
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=3-520150-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/es/p/interconnect--pin-and-socket-connectors--crimp-terminals/3-520150-2-te-connectivity-7387780
TE Connectivity 3-520150-2 - Technical Attributes
Attributes Table
| Size: | Tab 0.187" x 0.020" |
| Style: | Fully Insulated |
| Type: | Receptacle |
| Wire Gauge: | AWG 16-14 |
| Color: | Blue |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Gender: | Female |
| Operating Temp Range: | -40°C to +110°C |
| Voltage Rating: | 600V |
| Mounting Method: | Cable Mount |
Features & Applications
The Ultra Fast Series is a 16-14 AWG Straight Fully Insulated Receptacle Assembly
The Ultra-Fast Fully Insulated FASTON Receptacle and Tab offers the advantage of a completely protected terminal and a wire crimp with comparable electromechanical performance to open barrel “F” crimp FASTON Terminals.
Features:
- Terminal Type = Receptacle
- Proprietary Name = Ultra-Fast
- Receptacle Style = Straight
- Mating Area Interface Dimensions (mm [in]) = 4.75 x 0.51 [.187 x .020]
- Material = Brass
- Insulation Diameter (mm [in]) = 6.60 [.260] Max.
- Insulation Support = Non-Insulation Support
- Finish = Tin
Pricing Section
Global Stock:
4,000
USA:
4,000
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
2,000
$0.11
4,000
$0.108
6,000
$0.107
10,000+
$0.105
Product Variant Information section
Available Packaging
Package Qty:
2000 per Reel
Mounting Method:
Cable Mount
