Manufacturer Part #
MJE3055T

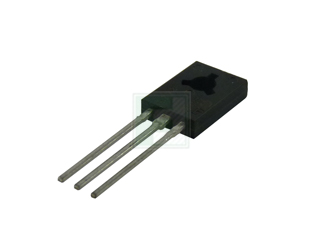

MJE3055T Series NPN 60 V 10 A Complementary Silicon Power Transistor - TO-220
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-220-3 (TO-220AB) Mounting Method:Through Hole | ||||||||||
| Date Code: | 2433 | ||||||||||
Product Specification Section
STMicroelectronics MJE3055T - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
STMicroelectronics MJE3055T - Technical Attributes
Attributes Table
| Polarity: | NPN |
| Type: | Power Transistor |
| CE Voltage-Max: | 60V |
| Collector Current Max: | 10A |
| Power Dissipation-Tot: | 75W |
| Collector - Base Voltage: | 70V |
| Collector - Emitter Saturation Voltage: | 8V |
| Emitter - Base Voltage: | 5V |
| DC Current Gain-Min: | 5 |
| Collector - Current Cutoff: | 1mA |
| Configuration: | Single |
| Frequency - Transition: | 2MHz |
| Operating Temp Range: | -55°C to +150°C |
| Package Style: | TO-220-3 (TO-220AB) |
| Mounting Method: | Through Hole |
Features & Applications
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
50
$0.38
200
$0.37
750
$0.36
1,500
$0.355
3,750+
$0.345
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-220-3 (TO-220AB)
Mounting Method:
Through Hole
