Référence fabricant
0314015.HXP

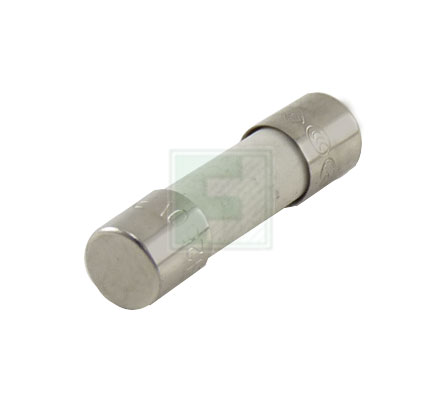

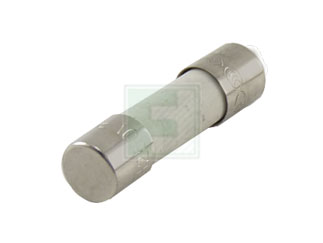

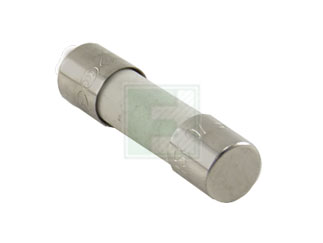

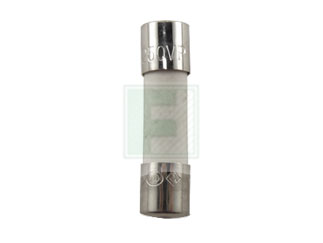

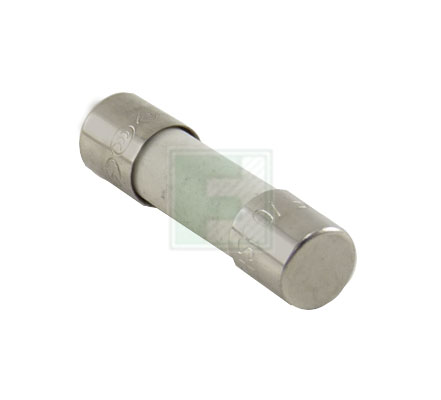

314 Series Fast-Acting 250 V 15 A Ø 6.35 x 31.75 mm Ceramic Cartridge Fuse
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | Littelfuse | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :100 par Bag Style d'emballage :CARTRIDGE | ||||||||||
| Code de date: | 2439 | ||||||||||
Littelfuse 0314015.HXP - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
This customer notification refers to a cosmetic change on the labels. No changes to form, fit and function of the affected fuses. With regards to the above reference, there will be an additional marking added to the labels of the affected fuses. Products affected are all fuses with CE mark on labels on the packaging and carton boxes. This change is only the addition of the below marking to the label and does not impact form, fit and function of the fuse itself.
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=0314015.HXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/fr/p/4084448
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=0314015.HXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/fr/p/4084448
Littelfuse 0314015.HXP - Caractéristiques techniques
| Voltage Rating: | 250V |
| Rated Voltage (VAC): | 250VAC |
| Response Characteristic: | Fast-Acting |
| Current Rating: | 15A |
| Resistance: | 0.00505Ω |
| Interrupting Rating: | 750A |
| Operating Temp Range: | -55°C to +125°C |
| Typical Melting I2t (A2sec): | 292A |
| Dimension: | L 31.75mm x D 6.35mm |
| Style d'emballage : | CARTRIDGE |
Emballages disponibles
Qté d'emballage(s) :
100 par Bag
Style d'emballage :
CARTRIDGE
