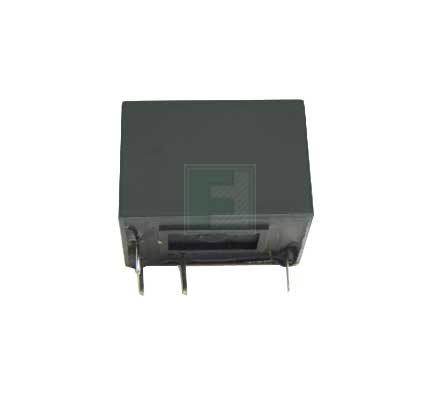

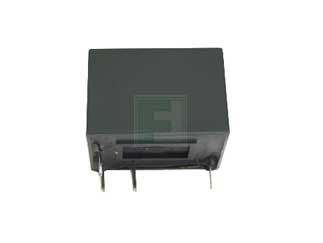

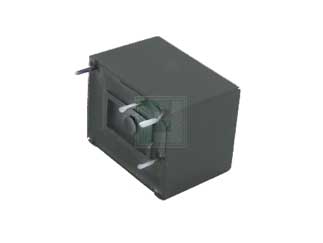

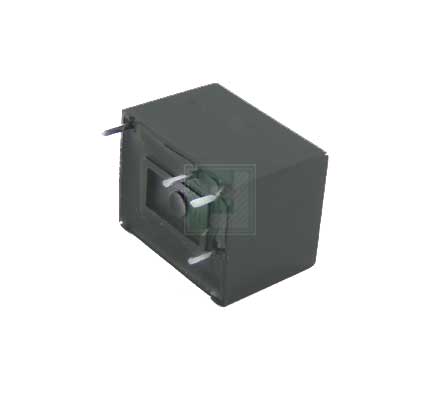

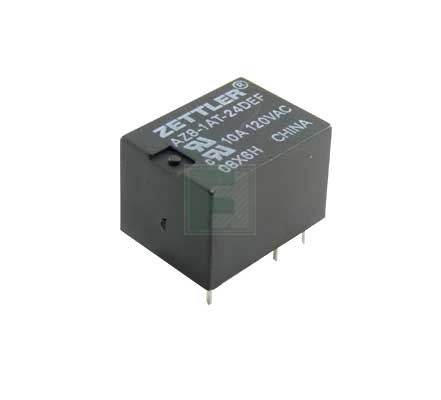

American Zettler | AZ8-1AT-24DEF

Manufacturer Part #

AZ8-1AT-24DEF

AZ8 Series 3 A SPST-NO (1 Form A) 24 VDC Miniature Power Relay

ECAD Model:
Mfr. Name: American Zettler
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
American Zettler AZ8-1AT-24DEF - Technical Attributes
Attributes Table
Contact Form: SPST (1 Form A)
Nominal Coil Voltage: 24V
Contact Current-Max: 10A
Termination Style: PC Pin
Mounting Method: PCB Mount
Features & Applications

The AZ8-1AT-24DEF is a 10 A SPST 24 VDC PCB Mount Heavy Duty Sealed Miniature Power Relay.

Features:

  • Subminiature size
  • High sensitivity, 110 mW pickup
  • Coils to 48 VDC
  • Hermetically sealed version available
  • Epoxy sealed for automatic wave soldering
  • Contacts rated at 3, 6 or 10 Amps
  • Withstands 6 kV IEEE Lightning Surge (special order)
  • Class B insulation (130°C) standard
  • Class F insulation (155°C) version available
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
1000
Multiple Of:
20
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,200.00
USD
Quantity
Unit Price
20
$1.27
60
$1.25
100
$1.24
300
$1.22
500+
$1.20
