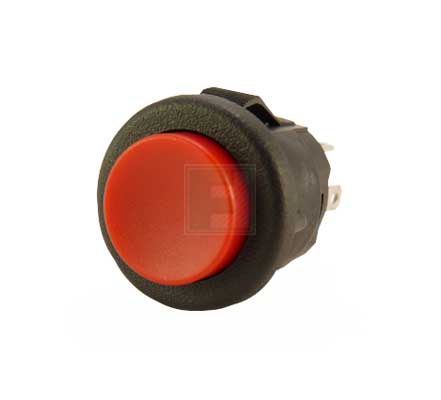

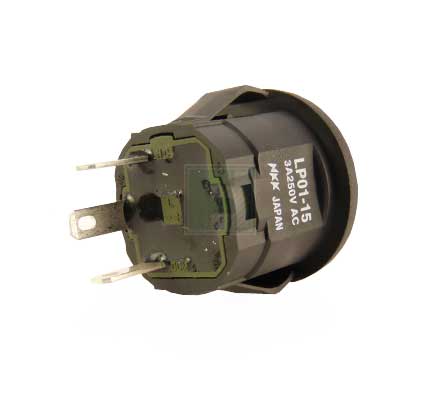

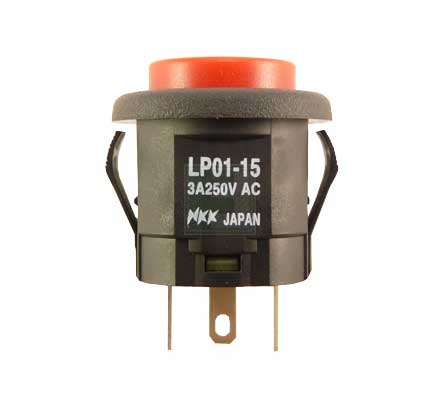

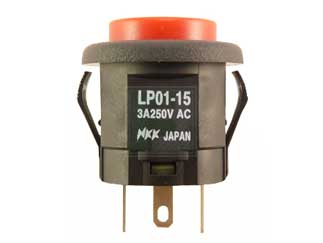

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

LP0115CMKW01C

LP01 Series SPDT On-Momentary Solder Lug/Quick Connect Red Pushbutton

LP0115CMKW01C Datasheet LP0115CMKW01C Documentation 3D Drawings
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	NKK Switches
Standard Pkg:	Product Variant Information section Available Packaging Std. Mfr. Pkg Std. Mfr. PkgSelected Variant Qty: 1+ / Unit Price: $10.47 / Stock: 0 Qty: 1+$10.47 Stock: 0 Package Qty: 1 per Std. Mfr. Pkg
Date Code:

NKK Switches LP0115CMKW01C - Technical Attributes

Contact Current-Max:	3A
Switch Operation:	On-Mom
Circuitry:	SPDT
Actuator Style:	Plunger
Termination Style:	Solder Lug

Features & Applications

The LP0115CMKW01C is a SPDT On-Momentary Solder Lug/Quick Connect Red Short Body Pushbutton. These switches have smooth, slightly concave surface of cap designed to fit fingertip. Unique design and construction of cap prevents its removal and limits tampering.

Features:

Short body of .551” (14.0 mm) conserves behind-panel space
Environmentally friendly components and packaging materials meet RoHS Directive restricting use of hazardous materials
Power Level (silver): 3 A @ 125 V AC or 3 A @ 250 V AC or 3 A @ 30 V DC
Operating Temp Range: –25°C through +70°C (–13°F through +158°F)
