Référence fabricant

1-480319-0

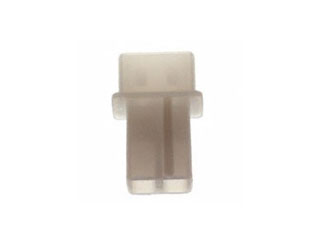

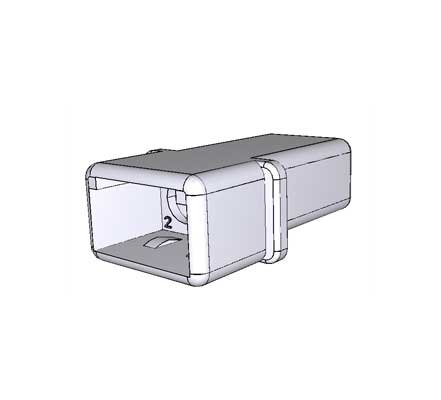

MATE-N-LOK 2 Position Detent Lock Free Hanging Housing Receptacle

Nom du fabricant: TE Connectivity
Emballage standard:
Product Variant Information section
Code de date: 1450
Product Specification Section
Caractéristiques techniques
Attributes Table
No of Positions: 2
No of Rows: 1
Contact Termination: Female/Socket Crimp
Pitch: 5.08 mm
Style/Orientation: Free Hanging Receptacle
Termination: Crimp
Operating Temp Range: -55°C to +105°C
Voltage Rating: 250V
Contact Plating: Pre-Tin
Material: Nylon
Gender: Male
Type: Receptacle
Mating Type: Detent Lock
Color: Natural
Fonctionnalités et applications
The 1-480319-0 is a Commercial MATE-N-LOK 2 Position Detent Lock Female Free Hanging Receptacle Connector.

Features:

  • Product Line = Commercial MATE-N-LOK
  • Product Type = Connector
  • Connector Type = Housing
  • Termination Method to Wire/Cable = Crimp
  • Wire/Cable Type = Discrete Wire
  • Mating Retention Type = Detent Lock
  • Contact Diameter (mm [in]) = 2.13 [0.084]
  • Number of Positions = 2
  • Number of Rows = 1
  • Contact Type = Pin
  • Connector Style = Receptacle
  • Housing Material = Nylon
  • Housing Color = Natural
  • UL Flammability Rating = UL 94V-2
  • Packaging Method = Box
  • RoHS/ELV Compliance = ELV compliant

View the complete 1-48031x series of Receptacle Connectors

Pricing Section
Stock:
309 004
Commande minimale :
1
Multiples de :
1
Sur commande :Order inventroy details
256 000
Stock d'usine :Stock d'usine :
2 230
Délai d'usine :
5-10 Jours
Total
0,16 $
USD
Quantité
Prix Internet
1
$0.155
250
$0.127
750
$0.122
1 500
$0.119
4 000+
$0.115
