Infineon | BSZ096N10LS5ATMA1

Manufacturer Part #

BSZ096N10LS5ATMA1

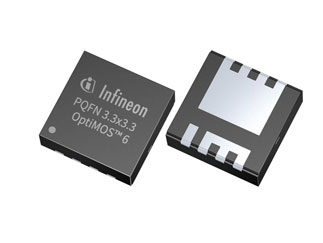

N-Channel 100 V 40 A 69 W Surface Mount Mosfet - PG-TSDSON-8-FL

ECAD Model:
Mfr. Name: Infineon
Standard Pkg:
Product Variant Information section
Date Code: 2449
Product Specification Section
Infineon BSZ096N10LS5ATMA1 - Technical Attributes
Attributes Table
Product Status: Active
Fet Type: N-Ch
No of Channels: 1
Drain-to-Source Voltage [Vdss]: 100V
Drain-Source On Resistance-Max: 9.6mΩ
Rated Power Dissipation: 69W
Qg Gate Charge: 22nC
Gate-Source Voltage-Max [Vgss]: 20V
Drain Current: 40A
Turn-on Delay Time: 5.7ns
Turn-off Delay Time: 21ns
Rise Time: 4.6ns
Fall Time: 5.3ns
Operating Temp Range: -55°C to +150°C
Gate Source Threshold: 2.3V
Input Capacitance: 2100pF
Mounting Method: Surface Mount
Pricing Section
Global Stock:
5,000
USA:
5,000
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
5000
Multiple Of:
5000
Total
$3,375.00
USD
Quantity
Unit Price
5,000
$0.675
10,000+
$0.66
