Manufacturer Part #

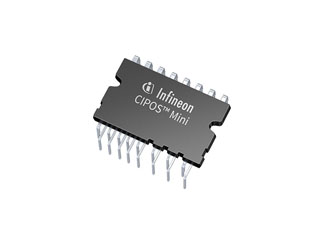

IM523X6AXKMA1
ASP,600 V 17A IGBT PG-MDIP-24
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:14 per Tube Package Style:Module Mounting Method:Through Hole | ||||||||||
| Date Code: | 2301 | ||||||||||
Infineon IM523X6AXKMA1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Subject Barcode Product Label (BPL) and lot number harmonization.DescriptionOld(1T) Lot number format: 8 digits starting with 2Z (both on device and BPL)Barcode Product Label: (X) showing Infineon internal number. New:(1T) Lot number format: 11 digits starting with 2Z (both on device and BPL)Barcode Product Label: (3P) Infineon manufacturing identifier as shown in delivery notesContent of (X) / (3P) and (1T) included both in the long and 2D barcode. Reason Harmonize and standardize the lot number format and the BPL across all external production partners.Intended start of delivery 2026-02-01
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=IM523X6AXKMA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/1192126
Infineon IM523X6AXKMA1 - Technical Attributes
| Output Current-Max: | 17A |
| Rated Power Dissipation: | 27.5W |
| Supply Voltage-Max: | 20V |
| Supply Voltage: | 1V to 20V |
| Fall Time: | 20ns |
| Rise Time: | 35ns |
| Operating Temp Range: | -40°C to +125°C |
| Package Style: | Module |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
14 per Tube
Package Style:
Module
Mounting Method:
Through Hole
