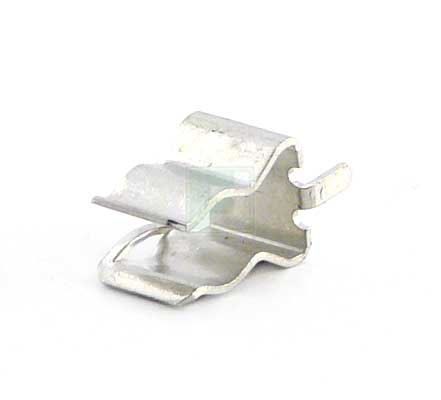

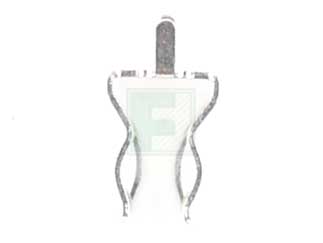

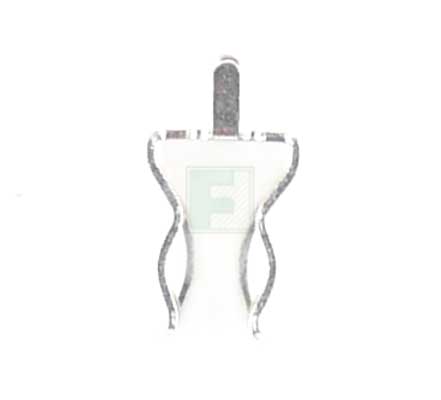

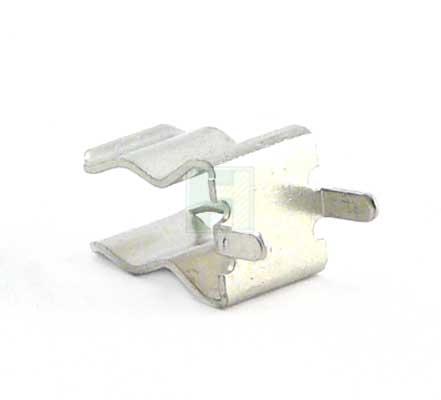

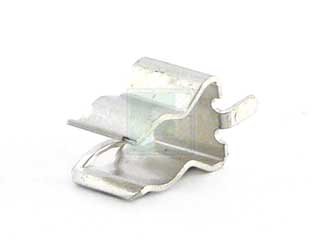

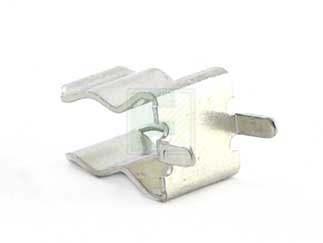

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

3529

15 A 1/4" Dia (6.35mm) Brass Tin Plated Clip Fuseholder

3529 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Keystone
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1000 per Bag
Date Code:	2339

Keystone 3529 - Technical Attributes

Hold Fuse Type:	Clip
Diameter:	6.4mm
Contact Material:	Brass
Contact Plating:	Tin
Current Rating:	15A
Termination Style:	PC Pin
Height - Max:	10.94mm
Dimension:	L 8.3mm x W 7.1mm

Features & Applications

For over fifty years, Keystone Electronics has been manufacturing precision electronic interconnect components and hardware.

Keystone’s offering has been created specifically for use by OEM Designers and Engineers who create and develop state-of-the-art electronic products, instruments and systems. While Keystone catalog products meet most standard requirements, modifications as well as custom fabrications can be manufactured to meet your special needs.

Keystone's PCB Fuse Clips and Holders are manufactured from brass and tin plated to assure low contact resistance, and superior shelf life, these clips have been designed to mount easily and retain stable position during wave soldering. These low profile space saving clips also feature orientation tabs and end stops to insure safety and design integrity.

The 3529 is a .020 inch thick Brass Tin plated 3AG Press-In Fuse Clip with end stop for .250 inch diameter fuse.
