Manufacturer Part #
NX7002BKMYL

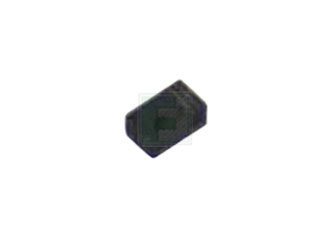

N-Channel 60 V 350 mA 2.8 Ohm 1 nC TrenchMOS™ Power Mosfet - SOT-883
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nexperia | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10000 per Reel Package Style:SOT-883 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Nexperia NX7002BKMYL - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Nexperia NX7002BKMYL - Technical Attributes
Attributes Table
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 60V |
| Drain-Source On Resistance-Max: | 2.8Ω |
| Rated Power Dissipation: | 350mW |
| Qg Gate Charge: | 1C |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 350mA |
| Turn-on Delay Time: | 4.7ns |
| Turn-off Delay Time: | 6.9ns |
| Rise Time: | 4.3ns |
| Fall Time: | 2.9ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 2.1V |
| Input Capacitance: | 23.6pF |
| Series: | NX7002 |
| Package Style: | SOT-883 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
10,000
$0.0225
20,000
$0.0221
40,000
$0.0218
50,000
$0.0217
150,000+
$0.0211
Product Variant Information section
Available Packaging
Package Qty:
10000 per Reel
Package Style:
SOT-883
Mounting Method:
Surface Mount
