Nexperia | NX138BKR

Manufacturer Part #

NX138BKR

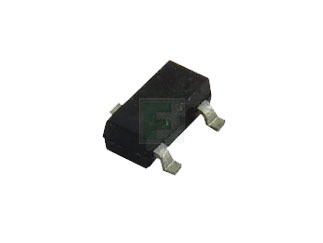

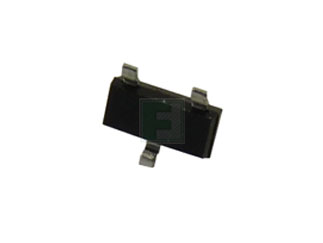

NX138BK Series 60 V 265 mA 3.5 Ohm Surface Mount N-Channel Mosfet - SOT-23

ECAD Model:
Mfr. Name: Nexperia
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Nexperia NX138BKR - Technical Attributes
Attributes Table
Fet Type: N-Ch
No of Channels: 1
Drain-to-Source Voltage [Vdss]: 60V
Drain-Source On Resistance-Max: 3.5Ω
Rated Power Dissipation: 310mW
Qg Gate Charge: 0.49nC
Gate-Source Voltage-Max [Vgss]: 20V
Drain Current: 265mA
Turn-on Delay Time: 7.9ns
Turn-off Delay Time: 12.5ns
Rise Time: 8.4ns
Fall Time: 5.1ns
Operating Temp Range: -55°C to +150°C
Gate Source Threshold: 1V
Input Capacitance: 20.2pF
Package Style:  SOT-23 (SC-59,TO-236)
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
48000
Multiple Of:
3000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,848.00
USD
Quantity
Unit Price
3,000
$0.0404
12,000
$0.0393
30,000
$0.0385
75,000
$0.0378
120,000+
$0.0367
