Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

922

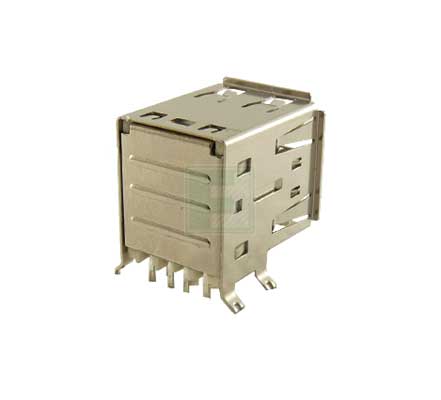

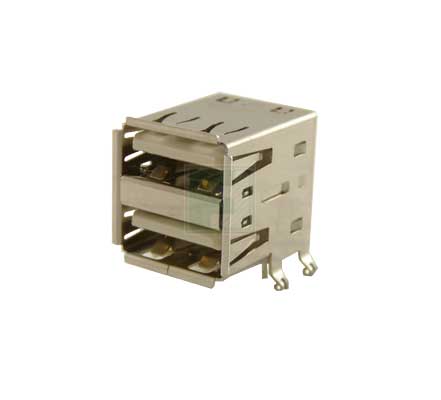

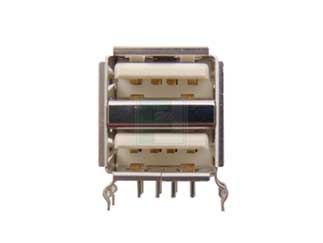

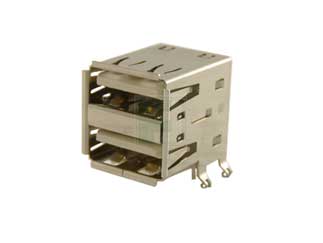

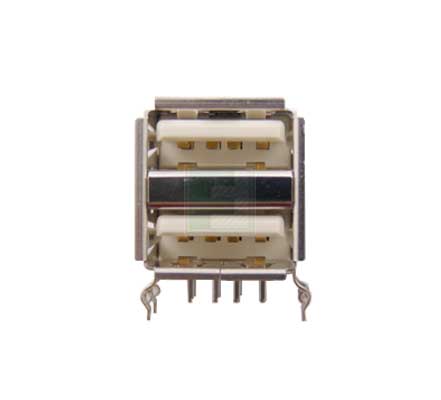

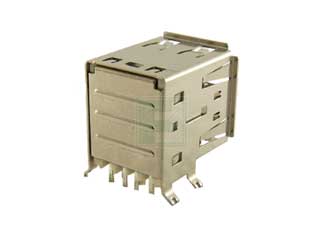

Horizontal Dual Stacking Type A USB Socket

922 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Keystone
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 500 per Tray Mounting Method: Through Hole
Date Code:	2219

Keystone 922 - Technical Attributes

Mounting Method:

Through Hole

Features & Applications

The 922 is a Horizontal Dual Stacking Type A USB Socket. These Universal Serial Bus (USB) Plugs and Sockets may replace all other existing ports and connectors, which alleviates restrictions of limited COM ports and available IRQ's. They enable users to daisy chain up to 127 devices. Data transfer rates for USB 3.0 are up to 480 Gbps. USB 3.0 sockets are backwards compatable with USB 2.0 plugs.

Construction Features :

Snap-in PC solder tails to hold connectors in position for wave soldering
Tin Plated solder tails for excellent solderability
Gold Plated contact areas assure low contact resistance and high reliability.

Product Specifications:

Shell: Phosphor Bronze, Tin over Nickel
Insulator: Thermoplastic, UL 94 V-0
Contacts: Phosphor Bronze
Contact Area: Gold Flash over Nickel
Solder Tails: Tin over Nickel
Rated Voltage: 30 V (RMS)
Contact Current Rating: 1 Amp DC max.
Contact Resistance: 30 Ω max.
Insulation Resistance: 1000 MΩ min
Operating Temperature: -32 °F (0°C) to 104 °F (40 °C)
