Manufacturer Part #

0363-0-15-15-23-27-10-0

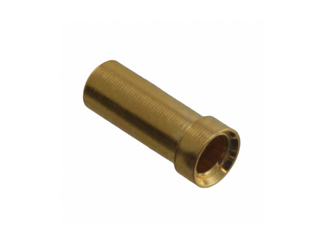

7.37 mm L Beryllium Copper No Tail Solder Receptacle Pin Connector

ECAD Model:
Mfr. Name: Mill-Max
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Mill-Max 0363-0-15-15-23-27-10-0 - Technical Attributes
Attributes Table
Type: Receptacle
Style/Orientation: Straight
No of Positions: 23
Gender: Female
Termination: Solder
Contact Current-Max: 11.2A
Length: 7.37mm
Contact Material: Beryllium Copper Alloy
Contact Plating: Gold
Pin Hole Diameter: 2.24mm
Mounting Hole Diameter: 2.59mm
Accepts Pin Diameter: 1.65mm
Socket Depth: 6.48mm
Mounting Method: PCB Mount
Features & Applications


Pins and Receptacles

Mill-Max Mfg. Corp. is the leading manufacturer of precision-machined interconnect components in North America.  Their facility is capable of producing over 100 million pins and receptacles per week. Benefits of precision-machining:

• high reliability – 2 piece construction.

• gas tight seal – environmental conditions will not affect the integrity of the contact.

• multiple contact options – contacts can be interchanged to provide for higher or lower insertion force.

• multiple shell options.

• multiple plating options, both RoHS and standard.

• encapsulated contact area – solder can’t wick up into contact area.

• high number of insertion cycles.

• acceptance range between .084 to .102.

The 036301515232710 is a solder mount in .012 mounting hole receptacle
Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
5 Weeks
Minimum Order:
1000
Multiple Of:
1000
Total
$870.00
USD
Quantity
Unit Price
500
$0.885
1,000
$0.87
1,500
$0.86
2,000+
$0.85
