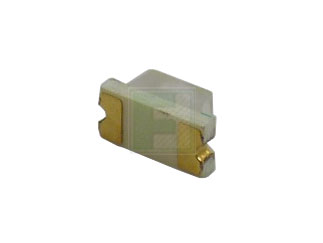

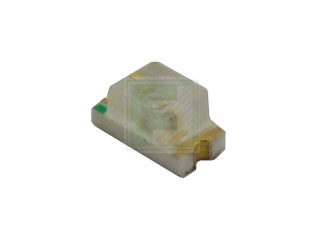

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

CMD11-21VGC/TR8

CMD11-21 Series Green 1206 20º 7.5 mcd Clear 2.1 V Surface Mount LED

CMD11-21VGC/TR8 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	VCC
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 3000 per Reel Mounting Method: Surface Mount
Date Code:

Expand List

Collapse List

The CMD11-21VGC/TR8 is a 570 nm green color, clear package surface mount LED with a typical luminous intensity of 75 mcd.

Features:

Surface Mount Technology
- Tape and reel packaged for high-speed autoinsertion.
- Convection and vapor-phase reflow compatible.
- Compact form enables high density placement.
- Packaged 2000 pieces per reel.
Leading Edge LED Optoelectronic Performance
- Consistent high brightness.
- Integral lensing for narrow angle light dispersion.
- Bi-color available.
Exceptional Reliability
- Stringent process controls assure quality.
- Extensive qualification testing to meet strictest requirements.
- Designed to permit easy post-reflow solder joint inspection.
- Solder pad geometry on page 1-X2.
