Manufacturer Part #
KSZ9021RL

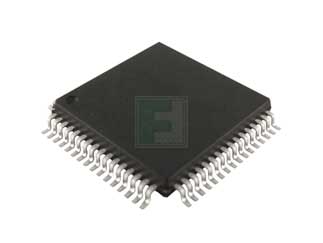

3.465 V Gigabit Ethernet Transceiver with RGMII Support - LQFP-64
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:160 per Tray Package Style:LQFP-64 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Microchip KSZ9021RL - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
5A991.b.1
This item may be subject to export licensing controls.
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=KSZ9021RL&field4=Microchip&field18=https://p1na.futureelectronics.com/p/5108303
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=KSZ9021RL&field4=Microchip&field18=https://p1na.futureelectronics.com/p/5108303
Microchip KSZ9021RL - Technical Attributes
Attributes Table
| Supply Voltage-Nom: | 3.135V to 3.465V |
| No of Functions / Channels: | 1 |
| Interface Type: | RGMII |
| Package Style: | LQFP-64 |
| Mounting Method: | Surface Mount |
Features & Applications
The KSZ9021RL is a 3.46 V Single-chip 10/100/1000 Mbps Gigabit Ethernet Transceiver with RGMII Support and its available in LQFP-64 package .
The KSZ9021RL is a completely integrated triple speed Ethernet Physical Layer Transceiver for transmission and reception of data over standard CAT-5 unshielded twisted pair (UTP) cable .
Product Features:
- Single-chip 10/100/1000 Mbps IEEE 802.3 compliant Ethernet Transceiver
- RGMII interface compliant to RGMII Version 1.3
- RGMII I/Os with 3.3 V/2.5 V tolerant and programmable timings to adjust and correct delays on both Tx and Rx paths
- Auto-negotiation to automatically select the highest link up speed (10/100/100 Mbps) and duplex (half/full)
- On-chip termination resistors for the differential pairs
- On-chip LDO controller to support single 3.3 V supply
- operation – requires only external FET to generate 1.2 V for the core
- Jumbo frame support up to 16KB
- 125 MHz Reference Clock Output
- Programmable LED outputs for link, activity and speed
- Baseline Wander Correction
- LinkMD® TDR-based cable diagnostics for identification of faulty copper cabling
- Parametric NAND Tree support for fault detection between chip I/Os and board.
- Loopback modes for diagnostics
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
1
$3.92
10
$3.84
25
$3.78
75
$3.71
150+
$3.63
Product Variant Information section
Available Packaging
Package Qty:
160 per Tray
Package Style:
LQFP-64
Mounting Method:
Surface Mount
