Manufacturer Part #
TL59AF100Q

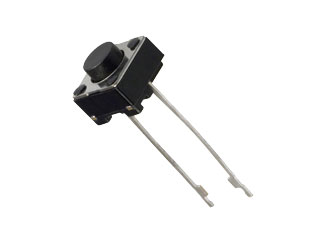

TL59 Series SPST-NO 0.05A 12V Tactile Switch
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | E-Switch | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1000 per Ammo Pack Mounting Method:Through Hole |
||||||||||
| Date Code: | 2601 | ||||||||||
Product Specification Section
E-Switch TL59AF100Q - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
China
HTS Code:
8536.50.90.33
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TL59AF100Q&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/5186595
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TL59AF100Q&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/5186595
E-Switch TL59AF100Q - Technical Attributes
Attributes Table
| Switch Operation: | Off-Mom |
| Circuitry: | SPST N.O. |
| Voltage Rating: | 12V |
| Current Rating: | 50mA |
| Insulation Resistance: | 100MΩ |
| Operating Force: | 100gf |
| Contact Plating: | Silver |
| Actuator Style: | Standard |
| Termination Style: | PC Pin |
| Dielectric Withstanding Voltage: | 250V |
| Operating Temperature: | -20°C to +70°C |
| Dimension: | H 5mm x L 6.2mm x W 6.2mm |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
6,000
USA:
6,000
Factory Lead Time:
14 Weeks
Quantity
Unit Price
1,000
$0.13
2,000
$0.128
3,000
$0.127
4,000
$0.126
5,000+
$0.124
Product Variant Information section
Available Packaging
Package Qty:
1000 per Ammo Pack
Mounting Method:
Through Hole
