Manufacturer Part #
2-66102-5

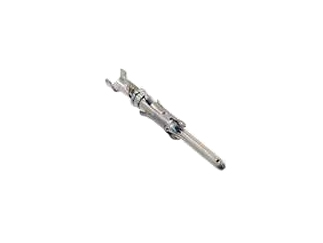

MULTIMATE Type III 24-20 AWG Insulation Support Crimp Signal Pin Contact
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Mounting Method:Wire Mount | ||||||||||
| Date Code: | 2112 | ||||||||||
Product Specification Section
TE Connectivity 2-66102-5 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-66102-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5204821
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-66102-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5204821
TE Connectivity 2-66102-5 - Technical Attributes
Attributes Table
| Type: | Contact |
| Contact Termination: | Male/Pin Crimp |
| No of Positions: | 1 |
| Wire Gauge: | AWG 20-24 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Operating Temp Range: | -55°C to +90°C |
| Mounting Method: | Wire Mount |
Features & Applications
The 2-66102-5 is a part of Multimate series Type III 24-20 AWG Insulation Support Crimp Signal Pin Contact
Product Type Features:
- Series = Type III+
- Insulation Support = Yes
- Termination Method to Wire/Cable = Crimp
- Wire/Cable Type = Discrete Wire
- Grade = Commercial
- High Current = No
- Termination End Plating = Bright Tin
- Pin Diameter (mm [in]) = 1.57 [0.062]
- Wire Range (mm [AWG]) = 0.20-0.60² [24-20]
- Spring Material = Stainless Steel
- Used With = G Series Connectors, M Series Connectors, CPC Connectors
- Contact Type = Pin
- Contact Classification = Signal
- Contact Plating, Mating Area, Material = Bright Tin
- Contact Base Material = Brass
- Contact Size = 16
Pricing Section
Global Stock:
8,000
USA:
8,000
Factory Lead Time:
30 Weeks
Quantity
Unit Price
4,000+
$0.38
Product Variant Information section
Available Packaging
Package Qty:
4000 per Reel
Mounting Method:
Wire Mount
