Manufacturer Part #
AZ733-2C-24DE

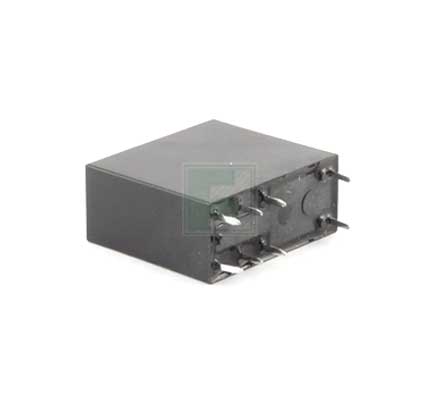

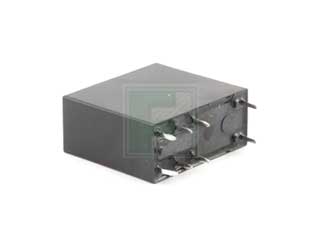

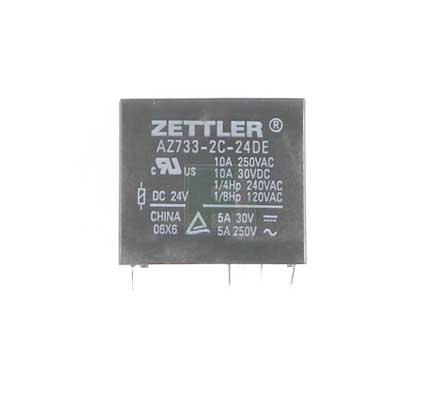

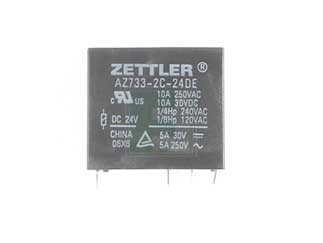

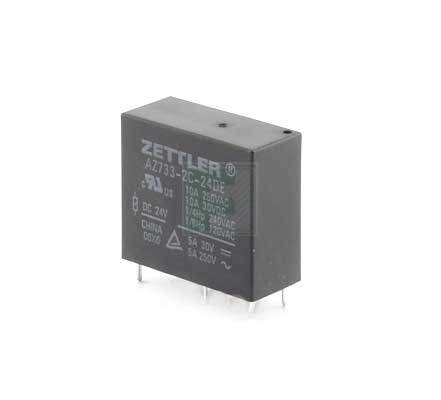

AZ733 Series 12 A DPDT 24 VDC PCB Mount Sealed Miniature Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | American Zettler | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tray Mounting Method:PCB Mount | ||||||||||
| Date Code: | 2235 | ||||||||||
Product Specification Section
American Zettler AZ733-2C-24DE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AZ733-2C-24DE&field4=American Zettler&field18=https://p1na.futureelectronics.com/p/5685078
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AZ733-2C-24DE&field4=American Zettler&field18=https://p1na.futureelectronics.com/p/5685078
American Zettler AZ733-2C-24DE - Technical Attributes
Attributes Table
| Relay Type: | Power |
| Coil Type: | Non-Latching |
| Contact Form: | DPDT (2 Form C) |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 12A |
| Coil Resistance: | 50mΩ |
| Switching Voltage: | 150V |
| Operating Temp Range: | -40°C to +90°C |
| Insulation Resistance: | 1000MΩ |
| Termination Style: | PCB |
| No of Terminals: | 8 |
| Mounting Method: | PCB Mount |
Pricing Section
Global Stock:
330
USA:
330
Factory Lead Time:
N/A
Quantity
Unit Price
1
$1.75
25
$1.73
50
$1.71
150
$1.68
300+
$1.64
Product Variant Information section
Available Packaging
Package Qty:
50 per Tray
Mounting Method:
PCB Mount
