AZ Displays | ATM0700D6C-T

Manufacturer Part #

ATM0700D6C-T

7"Display RGB 800x480 850 Nits Resistive Touch TFT LCD Panel

ECAD Model:
Mfr. Name: AZ Displays
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Features & Applications

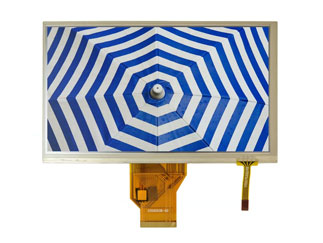

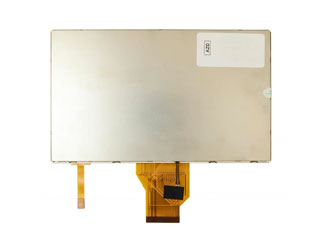

The ATM0700D6C-T is a 7 inch RGB-Stripe (800 x 480) LED Transmissive Digital Landscape TFT Module

Features:

  • 800 x RGB x 480
  • Wide VGA Resolution
  • LED Backlight with 500 Nits Brightness
  • Digital RGB interface
  • RoHS Compliant
  • Also available in 250 and 1,000 nits in the same footprint

Module specifications:

  • Overall Module Size: 7"
  • Resolution: 800XR.G.B.X480
  • Brightness: 1000
  • Contrast: 500
  • Power Consumption: 5.02
  • Back Light: LED
  • Viewing Angle:
    • +70/-50
    • +70/-70
  • Operation Temperature: -20~+70
  • Storage Temperature: -30~+80
  • Interface :Digital RGB
  • Active Area: 154.08X85.92
  • Outline Dimension: 164.9X100.0X5.7
  • Viewing Direction: 12 O'clock
  • Bonding Type: COG
  • Pixel Configuration: Stripe



Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
500
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$36,820.00
USD
Quantity
Unit Price
1+
$73.64
