Manufacturer Part #
74HC4046APW,118

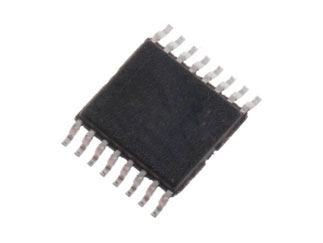

74HC Series 6 V 3-State Surface Mount Phase Lock Loop - TSSOP-16
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nexperia | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:HTSSOP-16 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Nexperia 74HC4046APW,118 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Nexperia 74HC4046APW,118 - Technical Attributes
Attributes Table
| Logic Circuit: | Phase Lock Loop |
| Family: | A/HC/T/U |
| Output Characteristics: | 3-ST |
| Supply Voltage-Nom: | 3V to 6V |
| Supply Current: | 8µA |
| Power Dissipation: | 500mW |
| Propagation Delay: | 340ns |
| Operating Temperature: | -40°C to +125°C |
| Capacitance: | 3.5pF |
| No of Inputs: | 2 |
| No of Outputs: | Triple |
| High Level Output Current: | -5.2mA |
| Low Level Output Current: | 5.2mA |
| No of Pins: | 16 |
| Moisture Sensitivity Level: | 1 |
| Package Style: | HTSSOP-16 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
2,500
$0.24
7,500+
$0.235
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
HTSSOP-16
Mounting Method:
Surface Mount
