Manufacturer Part #
B3B-ZR(LF)(SN)

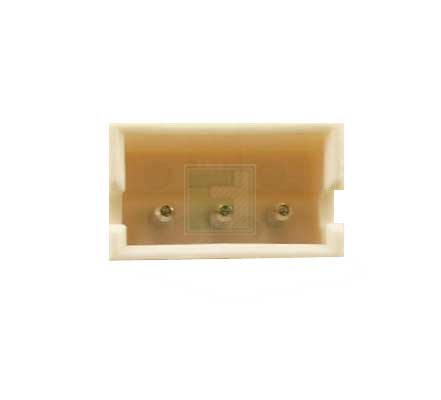

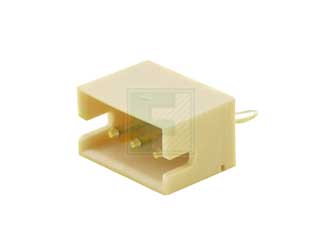

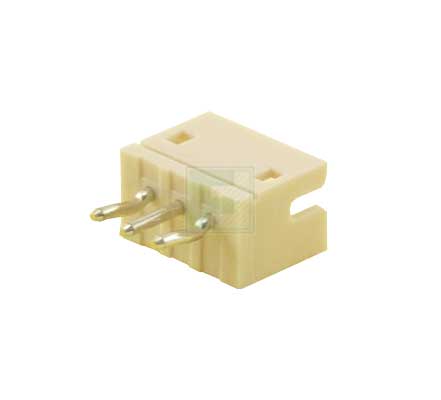

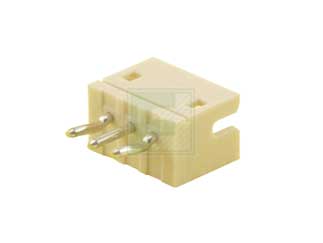

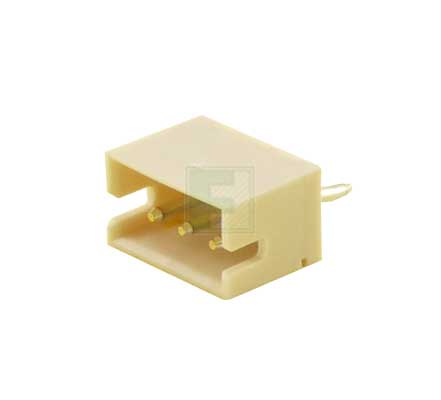

ZR Series 3 Position 1.5 mm Through Hole Single Row Straight Shrouded Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2248 | ||||||||||
Product Specification Section
JST B3B-ZR(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
JST B3B-ZR(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 3 |
| Pitch: | 1.5 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 50V |
| Current Rating: | 1A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 500MΩ |
| Mounting Method: | Through Hole |
Features & Applications
Pricing Section
Global Stock:
2,045
USA:
2,045
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$0.0754
300
$0.0737
1,250
$0.0711
3,000
$0.0695
12,500+
$0.0655
Product Variant Information section
Available Packaging
Package Qty:
2000 per Box
Mounting Method:
Through Hole
