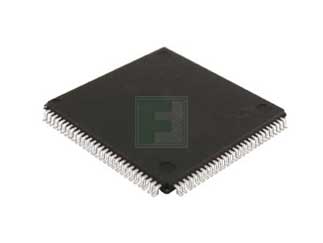

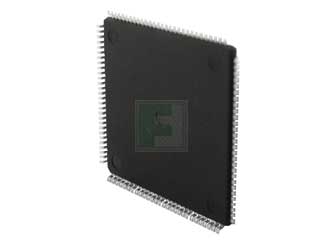

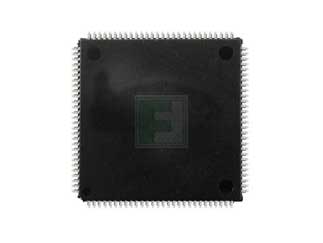

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

MCF52234CAL60

MCF5223x Series 256 kB Flash 32 kB RAM ColdFire 32-Bit Microcontroller-LQFP-112

MCF52234CAL60 Datasheet MCF52234CAL60 Documentation Application Note Fact Sheet Product Brief Reference Manual
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	NXP
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 300 per Tray Package Style: LQFP-112 Mounting Method: Surface Mount
Date Code:	2434

NXP MCF52234CAL60 - Technical Attributes

Family Name:	MCF5223x
Core Processor:	CPU32
Program Memory Type:	Flash
Flash Size (Bytes):	256kB
RAM Size:	32kB
Speed:	60MHz
No of I/O Lines:	73
InterfaceType / Connectivity:	I2C/SPI/UART
Peripherals:	I2C/On-Chip-ADC/PWM/SPI/UART/Watchdog
Number Of Timers:	1
Supply Voltage:	3.3V to 3.6V
Operating Temperature:	-40°C to +85°C
On-Chip ADC:	8-chx12-bit
Watchdog Timers:	1
Package Style:	LQFP-112
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

The MCF52234CAL60 is a highly integrated, high-performance 32-Bit Microcontroller with ColdFire V2 Core, 32 KB RAM, 256 KB flash memory and available in LQFP-112 surface mount package.

Features:

V2 ColdFire core providing 56 Dhrystone 2.1 MIPS @ 60 MHz executing out of on-chip Flash memory using enhanced multiply accumulate (EMAC) and hardware divider
Enhanced Multiply Accumulate Unit (EMAC) and hardware divide module
Cryptographic Acceleration Unit (CAU) coprocessor
Fast Ethernet Controller (FEC)
On-chip Ethernet Transceiver (EPHY)
FlexCAN controller area network (CAN) module
Three universal asynchronous/synchronous receiver/transmitters (UARTs)
Inter-integrated circuit (I2C™) bus controller
Queued serial peripheral interface (QSPI) module
Eight-channel 10- or 12-bit fast analog-to-digital converter (ADC)
Four channel direct memory access (DMA) controller
Four 32-bit input capture/output compare timers with DMA support (DTIM)
Four-channel general-purpose timer (GPT) capable of input capture/output compare, pulse width modulation(PWM) and pulse accumulation
Eight/Four-channel 8/16-bit pulse width modulation timers (two adjacent 8-bit PWMs can be concatenated to form a single 16-bit timer)
Two 16-bit periodic interrupt timers (PITs)
Real-time clock (RTC) module
Programmable software watchdog timer
Two interrupt controllers providing every peripheral with a unique selectable-priority interrupt vector plus seven
external interrupts with fixed levels/priorities
Clock module with support for crystal or external oscillator and integrated phase-locked loop (PLL)
Test access/debug port (JTAG, BDM)

Applications:

Industrial
- Advanced Heat Meter
- Programmable Logic Control (PLC)
- Process Control, Temperature Control
- Fieldbus-to-Ethernet Gateway
- Lighting Control
- Security and Access Control Panels
- Home/Industrial Automation
- ZigBee® Control Nodes
Networking
- Ethernet Switch
