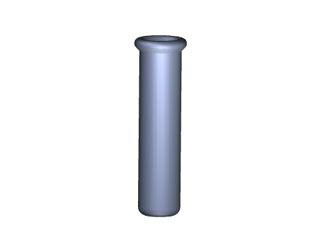

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

5050864-1

1 Position PC Pin Receptacles, Socket Press Fit Connector

5050864-1 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 20000 per Bag
Date Code:

TE Connectivity 5050864-1 - Technical Attributes

Style/Orientation:	Straight Socket/Receptacle
No of Positions:	1
Gender:	Female
Termination:	Press-fit

Features & Applications

The 5050864-1 is a 1 Position PC Pin Receptacles, Socket Press Fit Connector.

The AMP Miniature Spring Socket System is composed of a series of individual sockets, each utilizing a permanently secured helical spring design to accept round, square or rectangular leads interchangeably in a diameter range of .012 to .065 [0.30 to 1.65].

The unique Miniature Spring Socket design (helical spring for multiple points of contact and a crimped spring and eyelet) provides low contact resistance while most other manufacturers utilize a spring pressed into a sleeve.

Product Features:

Socket Length (mm [in]) = 6.53 [0.257]
Sleeve Style = Closed Bottom
Sealant = Without
Sleeve Material = Copper
Recommended Hole Size (mm [in]) = 1.57 [0.062]
Mating Pin Dia. Range (mm [in]) = 0.66 – 0.84 [0.026 – 0.033]
Sleeve Material Plating = Tin
Spring Material = Beryllium Copper
Contact Spring Plating = Gold (30)

View the Available PC Pin Receptacles Connectors
