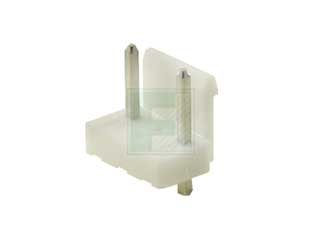

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

B2P3-VH(LF)(SN)

VH Series 7.92 mm Pitch, Box-Shaped Contact, Arm Lock Mechanism, Locking Header

B2P3-VH(LF)(SN) Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	JST
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1000 per Bag Mounting Method: Through Hole
Date Code:	2301

JST B2P3-VH(LF)(SN) - Technical Attributes

No of Positions:	2
Pitch:	7.92 mm
Style/Orientation:	Straight Header/Plug
Termination:	Solder
Operating Temp Range:	-25°C to +85°C
Voltage Rating:	250V
Current Rating:	7A
Contact Plating:	Tin
Material:	Polyamide
No of Rows:	1
Gender:	Male
Type:	Locking Header
Mating Type:	Locking Ramp
Color:	Natural
Insulation Resistance:	1000MΩ
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

The B2P3-VH(LF)(SN) is a part of VH series that features an anti-misinsertion construction and a reliable locking mechanism to ensure maximum safety, and this large current carrying capacity connector is used with primary power supply circuits and various other circuits requiring large currents. It has an Operating Temperature range of -25° C to +85° C.

Product Features:

Current rating: 7.0A AC,DC
Voltage rating: 250V AC,DC
Contact Resistance: Initial value/10mO max
Insulation resistance: 1000MO min
Withstanding voltage: 1200V AC/minute
Applicable wire: AWG #20 to #18
Applicable PC board thickness: 1.6mm
Box contact

This connector has the box-shaped contact.

Compact connector with a large capacity

Even though this connector has a large current carrying capacity, it is compact with a mounting height of 17.5mm

Secure contact and mounting

The housing has an arm lock mechanism which prevents the connector from working loose due to vibration.
