Manufacturer Part #
776262-4

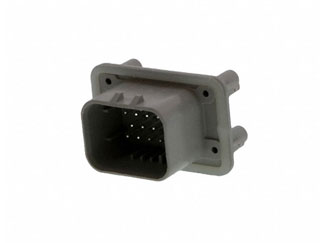

DEUTSCH AMPSEAL 14 Position 3 Row 4 mm Pitch Vertical Header Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:180 per Tray Mounting Method:Panel Mount |
||||||||||
| Date Code: | 2315 | ||||||||||
TE Connectivity 776262-4 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Product Description:AMPSEAL 14-Position Vertical and Right-Angle Header Counterbore AdditionGeneral Description of ChangesThe Industrial and Commercial Transportation business unit of TE Connectivity is making a change to the mounting hole geometry on all 14-position vertical and right-angle AMPSEAL headers for the part number(s) listed below. A counterbore will be added to each of the mounting holes. These PNs are TE proprietary designs, therefore considered catalog/general market products. This change was originally proposed in PCN E-20-017968 but was never implemented. This PCN serves as a reminder and continuation of PCN E-20-017968. No additional changes are being implemented. PPAP requests must be submitted within 14 days of PCN submission via ict-ppap-request@te.com or ePPAP system. Submission will not occur without request. If PPAP requested, disposition response is required within 14 days of submit date or it will be considered approved. PPAP requests in response to PCN E-20-017968 do not need to be resubmitted. Product drawing(s) are affected.Reason for Changes:Dear Customer, we hereby inform you of this change. The change is necessary to improve mounting capabilities. The change does not impact performance. IMPORTANT: The current and previous revisions of these parts can be used interchangeably in the eld. The change(s) are being phased in gradually and previous revision can remain stocked until use. Shipments of both con gurations may be mixed.First Ship Date of Changed Items (Changed Parts Only): 30-JUN-2025
General Product Description:AMPSEAL 8P, 14P, 23P, & 35P HeadersDescription of ChangesThe Industrial and Commercial Transportation business unit of TE Connectivity is adding additional molding and plating capabilities at approved TE vendors in China. This will apply to the vertical and right angle 8P, 14P, 23P, and 35P AMPSEAL headers for the part number(s) listed below. This is necessary to increase production capacity and meet customer demand. The additional capabilities will not impact connector performance. IMPORTANT: No t, form or function change. Parts are identical to current production. Product drawing(s) are not a ected. These PNs are TE proprietary designs and are therefore considered catalog/general market products. PPAP and/or sample requests must be submitted within 14 days of PCN submission via ict-ppap-request@te.com or ePPAP system. Submission will not occur without request. If PPAP is requested, disposition response is required within 14 days of submit date or it will be considered approved. Shipments may be mixed.Reason for Changes:This change is necessary to increase production capacity and meet customer demand
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776262-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/9141115
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776262-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/9141115
TE Connectivity 776262-4 - Technical Attributes
| Type: | Header |
| Pin or Socket: | Pin |
| Contact Termination: | Solder |
| Material Finish: | Tin |
| Contact Material: | Brass |
| Color: | Grey |
| No of Rows: | 3 |
| No of Positions: | 14 |
| Operating Temp Range: | -40°C to +105°C |
| Mounting Method: | Panel Mount |
Available Packaging
Package Qty:
180 per Tray
Mounting Method:
Panel Mount
