Manufacturer Part #
IRF5802TRPBF

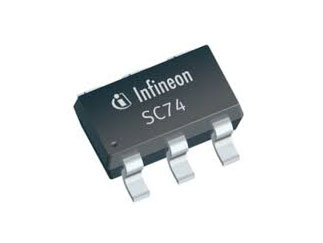

Single N-Channel 150 V 1.2 Ohm 6.8 nC HEXFET® Power Mosfet - SC-74
Product Specification Section
Infineon IRF5802TRPBF - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Part Status:
Active
Active
Infineon IRF5802TRPBF - Technical Attributes
Attributes Table
Fet Type: | N-Ch |
No of Channels: | 1 |
Drain-to-Source Voltage [Vdss]: | 150V |
Drain-Source On Resistance-Max: | 1.2Ω |
Rated Power Dissipation: | 2W |
Qg Gate Charge: | 6.8nC |
Gate-Source Voltage-Max [Vgss]: | 30V |
Drain Current: | 0.9A |
Turn-on Delay Time: | 6ns |
Turn-off Delay Time: | 7.5ns |
Rise Time: | 1.6ns |
Fall Time: | 9.2ns |
Operating Temp Range: | -55°C to +150°C |
Gate Source Threshold: | 5.5V |
Technology: | Si |
Height - Max: | 1.1mm |
Length: | 3.1mm |
Input Capacitance: | 88pF |
Package Style: | SC-74 (TSOP-6) |
Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
105,000
USA:
105,000
Factory Lead Time:
18 Weeks
Quantity
Unit Price
3,000
$0.0952
9,000
$0.0928
15,000
$0.0918
30,000
$0.0903
60,000+
$0.088
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SC-74 (TSOP-6)
Mounting Method:
Surface Mount
