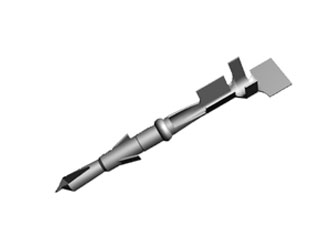

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

640545-1

18-26 AWG Discrete Wire to Wire Strain Relief Crimp Pin Contact

640545-1 Datasheet 640545-1 Documentation Application Note Product Specification Product Drawing 3D View
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 10000 per Bag
Date Code:

Features & Applications

The 640545-1 is a 18-26 AWG Discrete Wire to Wire Strain Relief Crimp Pin Contact.

The Miniature Rectangular Connector performance characteristics found are based on free hanging and panel mount connectors, loaded with contacts crimped on stranded wire.

Features:

Product Type = Contact
Strain Relief = With
Wire/Cable Type = Discrete Wire
Termination Method to Wire/Cable = Crimp
Contact - Rated Current (A) = 9
Hot Pluggable = No
Operating Voltage Reference = AC
Operating Voltage (VAC) = 250
Profile Height (Y-Axis) (mm [in]) = 2.54 [0.100]
Contact Type = Pin
Contact Base Material = Phosphor Bronze
Contact Plating, Mating Area, Material = Pre-Tin
Contact Plating, Mating Area, Thickness (µm [μin]) = 0.4 [15.75]
Contact Design = Formed Pin
Mating Alignment = Without
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Operating Temperature (°C [°F]) = -55 – +105 [-67 – +221]

Applications:

Application Use = Wire-to-Wire
Contact Transmits (Typical Application) = Signal (Data)/ Power
