Manufacturer Part #
09282486801

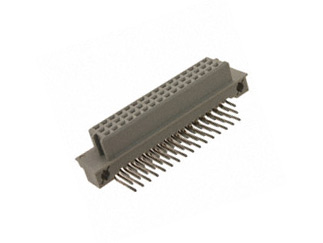

Type 2R 48 Position 2.54 mm Pitch Right Angle Socket PCB Mount Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | HARTING | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:20 per Box Mounting Method:Through Hole |
||||||||||
| Date Code: | 2147 | ||||||||||
Product Specification Section
HARTING 09282486801 - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
HTS Code:
8536.69.40.40
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=09282486801&field4=HARTING&field18=https://p1na.futureelectronics.com/p/9867680
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=09282486801&field4=HARTING&field18=https://p1na.futureelectronics.com/p/9867680
HARTING 09282486801 - Technical Attributes
Attributes Table
| Style/Orientation: | Standard PCB Mount Receptacle |
| No of Positions: | 48 |
| No of Rows: | 3 |
| Termination: | PCB |
| Pitch: | 2.54 mm |
| Material: | Front Metal |
| Gender: | Female |
| Color: | Grey |
| Current Rating: | 2A |
| Contact Plating: | Tin |
| Insulation Resistance: | 1000GΩ |
| Operating Temperature: | -55°C to +125°C |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
9 Weeks
Quantity
Unit Price
10
$3.42
25
$3.38
75
$3.33
150
$3.30
400+
$3.21
Product Variant Information section
Available Packaging
Package Qty:
20 per Box
Mounting Method:
Through Hole
