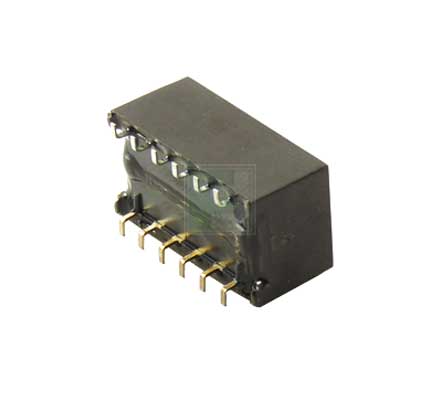

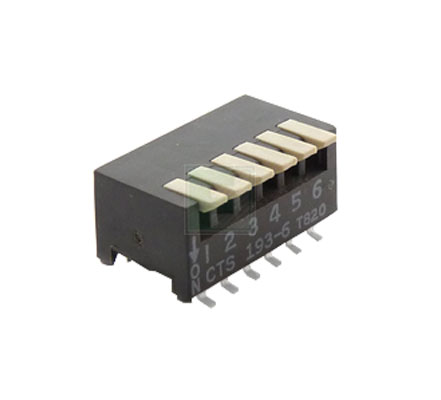

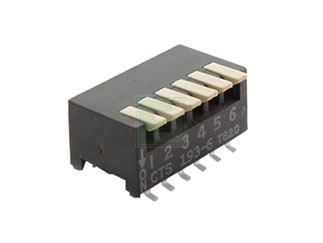

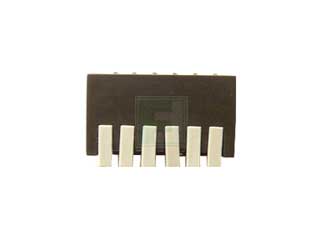

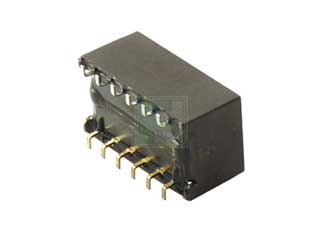

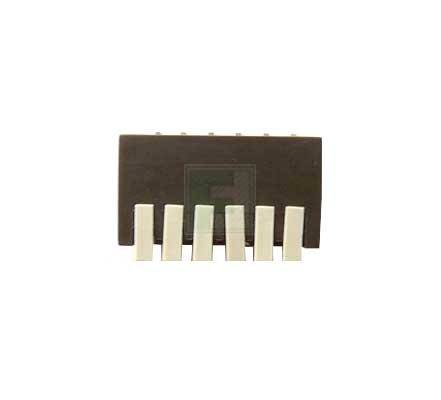

CTS | 193-6MS

The 1193-6MS is a part of 193 series DIP Switch. It has an operating temperature ranging from -40 °C to +85 °C.

Features:

• Optimized Mechanical Features:
• Coplanarity: 0.1mm/.004" maximum
• Enclosed actuators shield contacts from foreign particles throughout life of switch
• Gull-wing terminal configuration
• Compatible with SMT assembly including IR and Vapor-phase (up to 260°C)
• SPST configuration,2 through 10 positions
• Optimized Contact System:
• Contact wiping action on make and break
• Integral terminal and contact locked into high temperature plastic base
• Lock-over-center design provides positive detent action
• Optimized, active contact design incorporating dimple-to-flat surface wiping interface with high contact force
• Materials:
• Gold plated contacts for long-term contact corrosion resistance
• Tin plated terminals for better solderability
• UL 94V-0 plastics
• RoHS compliant

  View the complete product family of 193 series DIP Switch
