Manufacturer Part #
BAW156T-7-F
Diodes - General Purpose, Power, Switching 85V 150mW
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-523 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated BAW156T-7-F - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=BAW156T-7-F&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/p/discretes--diodes--switching/baw156t-7-f-diodes-incorporated-5048911
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=BAW156T-7-F&field4=Diodes Incorporated&field18=https://p1apac.futureelectronics.com/p/discretes--diodes--switching/baw156t-7-f-diodes-incorporated-5048911
Diodes Incorporated BAW156T-7-F - Technical Attributes
Attributes Table
| Configuration: | Dual |
| Reverse Current-Max: | 5nA |
| Forward Voltage: | 1.25V |
| Reverse Voltage-Max [Vrrm]: | 85V |
| Reverse Recovery Time-Max: | 3µs |
| Power Dissipation: | 0.15W |
| Diode Capacitance-Max: | 2pF |
| Average Forward Current-Max: | 125mA |
| Peak Current-Max: | 4A |
| Operating Temp Range: | -65°C to +150°C |

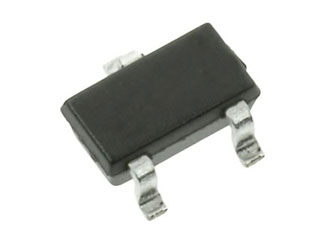

| Package Style: | SOT-523 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
3,000
$0.028
9,000
$0.0273
15,000
$0.027
60,000
$0.0262
90,000+
$0.0256
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-523
Mounting Method:
Surface Mount
