Product Specification Section
Pricing Section

Stock: 13,719

Web Price
$0.50 USD Each

$7.00 reeling fee is amortized over the number of components for each reel. Mini-Reels are a custom product and are non-cancelable and non-returnable.

Cost Per Unit: $4.00


Attributes Table
Voltage Rating 30V
Hold Current [Ih] 0.75A
Trip Current 1.5A
Operating Temp Range -40°C to +85°C
Dimension T  3.18mm x L  7.36mm x W  5.12mm
Features and Applications

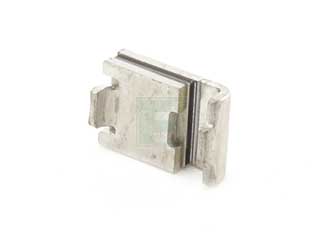

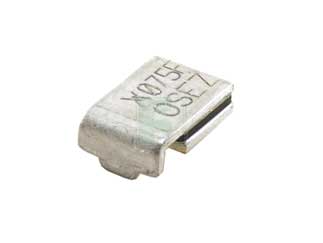

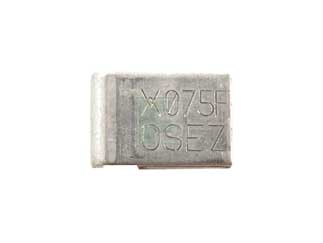

The SMD075F-2 is a polyswitch resettable fuse, with 30 V, 0.75 A hold current. It is compatible with high-volume electronics assembly.

This device is the preferred circuit protection method for computer, consumer, multimedia, portable, and automotive electronics applications.


  • More design flexibility
  • Low current
  • Halogen free and small footprint
  • Fast time-to-trip
  • Low resistance


  • Computer and portable electronics
  • Multimedia and game machines
  • Telephony and broadband
  • Mobile phones and battery
  • Automotive and industrial controls
