Manufacturer Part #
B72280B271K1

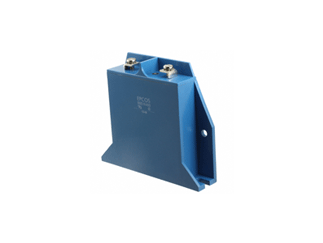

Block Series 80 mm 275 VAC 350 VDC 10K A 430 V Bolt-Down Box MOV Varistor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TDK EPCOS | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5 per Bulk Mounting Method:Chassis Mount | ||||||||||
| Date Code: | |||||||||||
TDK EPCOS B72280B271K1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Additional production site for back-end process of block varistors in Kutina.To increase the production capacity, additional to the current production site in Zhuhai/China an alternative production site will be introduced in Kutina/Croatia for back-end processes (metallization, assembly, soldering, sealing, marking, electrical and optical outgoing inspection and packing) of EPCOS block varistors (B72232B*, B72240B*, B72260B*and B72280B*). This change has no impact on function, quality, reliability or lead time of the affected products. The plant in Kutina is qualified to IATF 16949 and produces at the same quality level as the plant in Zhuhai.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B72280B271K1&field4=TDK EPCOS&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--varistors-mov-mlv/b72280b271k1-tdk-epcos-3089884
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B72280B271K1&field4=TDK EPCOS&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--varistors-mov-mlv/b72280b271k1-tdk-epcos-3089884
TDK EPCOS B72280B271K1 - Technical Attributes
| Clamping Voltage-Max: | 710V |
| Peak Output Current: | 100kA |
| RMS Voltage-Max: | 275V |
| Varistor Voltage Range: | 387V to 473V |
| Energy: | 1400J |
| Insulation Resistance: | 10MΩ |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -40°C to +110°C |
| Mounting Method: | Chassis Mount |
Available Packaging
Package Qty:
5 per Bulk
Mounting Method:
Chassis Mount
