Manufacturer Part #
1-1393788-1

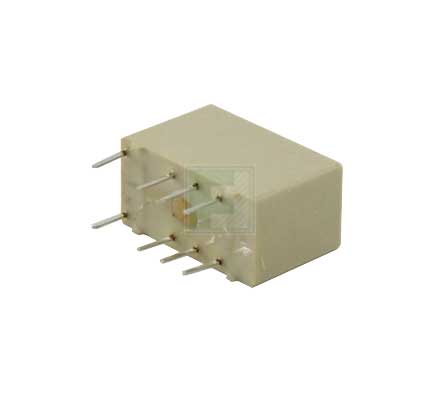

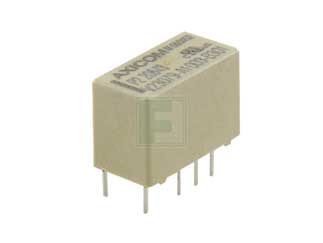

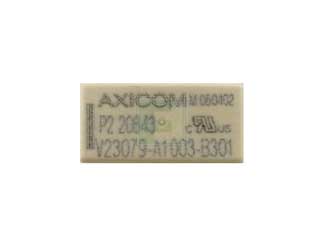

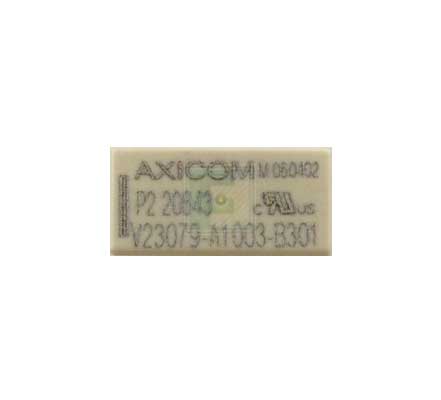

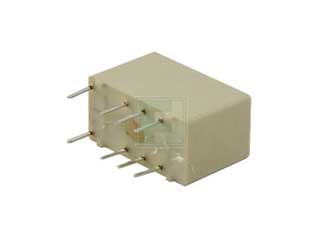

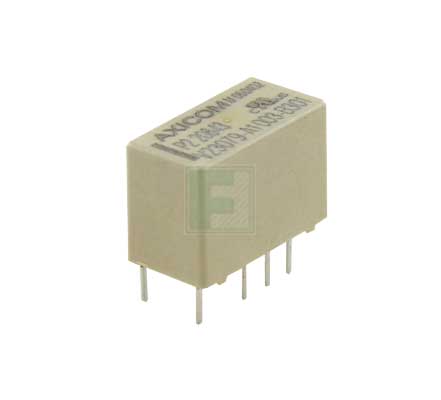

P2 Series 2 A DPDT 12 VDC PCB Mount Communications/Signal PC Board Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Mounting Method:PCB Mount | ||||||||||
| Date Code: | 2335 | ||||||||||
TE Connectivity 1-1393788-1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
*** UPDATE FPCN105581 - Material Change - With Additional Part List ***General Description of ChangesTo ensure consistent high quality and availability, we intend to add a new alternative plastic material for P2 overmoulding to the current plastic material for P2 overmoulding. While both materials have the same characteristics, have passed the same tests and are both UL, VDE and certified, the new material color appears slightly lighter. The relay form, features and ratings remain unchanged.Reason for Changes:Dear Customer, In order to ensure a consistently high quality and delivery capability, we intend to add an alternative plastic material to the P2 Overmold. The parts listed below are affected by this change.
General Description of Changes:To ensure consistent high quality and availability, we intend to add a new alternative plastic material for P2 overmoulding to the current plastic material for P2 overmoulding. While both materials have the same characteristics, have passed the same tests and are both UL, VDE and certified, the new material colour appears slightly lighter. The relay form, features and ratings remain unchanged.eason for Changes:Dear Customer, In order to ensure a consistently high quality and delivery capability, we intend to add an alternative plastic material to the P2 Overmold. The parts listed below are affected by this change.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1393788-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1-1393788-1-te-connectivity-5021167
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1393788-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1-1393788-1-te-connectivity-5021167
TE Connectivity 1-1393788-1 - Technical Attributes
| Relay Type: | Signal |
| Coil Type: | Non-Latching |
| Contact Form: | DPDT (2 Form C) |
| Nominal Coil Voltage: | 12V |
| Contact Current-Max: | 2A |
| Coil Resistance: | 1029Ω |
| Switching Voltage: | 220V |
| Contact Material: | Silver Nickel (AgNi) |
| Operating Temp Range: | -40°C to +85°C |
| Insulation Resistance: | 1GΩ |
| Height - Max: | 9.8mm |
| Termination Style: | PC Pin |
| No of Terminals: | 8 |
| Mounting Method: | PCB Mount |
Features & Applications
The 1-1393788-1 is a part of 1-1393 series 2 A DPDT power relays.
Features:
- Product Type Features:
- Series = V23079 / P2 Relay
- Termination Type = Through Hole
- Electrical Characteristics:
- Actuating System = DC
- Input Voltage (VDC) = 12
- Contact - Rated Current (A) = 2
- Coil Resistance (?) = 1029
- Coil - Rated Power (mW) = 140
- Insulation - Special Features = FCC Part 68 Isolation
- Insulation - Initial Dielectric Between Contacts and Coil (V rms) = 1500
- Contact Features:
- Mounting Options = PC Board
- Enclosure Type = Immersion Cleanable
- Contact Base Material = Silver Nickel, Gold Overlay
- Approx. Dimensions (L x W x H) (mm [in]) = 15.00 x 7.50 x 9.90 [.591 x .296 x .390]
- Option = Bellcore GR1089
- DIP Package Style = Vertical
- Contact Configuration = Bifurcated
- Pin Configuration = DIP
Available Packaging
Package Qty:
50 per Tube
Mounting Method:
PCB Mount
