AZ2100-1A-24D

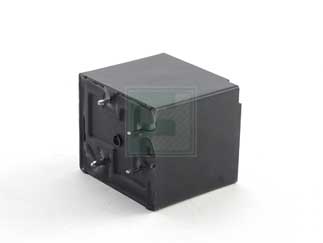

AZ2100 Series 40 A SPST 24 VDC PCB Mount Miniature Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | American Zettler | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:40 per Tray Mounting Method:PCB Mount | ||||||||||
| Date Code: | 2146 | ||||||||||
Product Specification Section
American Zettler AZ2100-1A-24D - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
American Zettler AZ2100-1A-24D - Technical Attributes
Attributes Table
| Relay Type: | Power |
| Coil Type: | Non-Latching |
| Contact Form: | SPST (1 Form A) |
| Nominal Coil Voltage: | 24V |
| Contact Current-Max: | 40A |
| Coil Resistance: | 660Ω |
| Switching Voltage: | 30V |
| Contact Material: | Silver Cadmium Oxide (AgCdO) |
| Operating Temp Range: | -55°C to +105°C |
| Insulation Resistance: | 1000MΩ |
| Height - Max: | 1.1mm |
| Termination Style: | Quick Connect |
| No of Terminals: | 4 |
| Mounting Method: | PCB Mount |
Features & Applications
The AZ2100-1A-24D is a 40 A SPST 24 VDC PCB Mount Miniature Power Relay. These relays are available in epoxy sealed version.
Features:
- Versatility of both PC and “Trace-Saver” quick-connect terminals on contacts
- 40 Amp switching capability
- 1 Form A, B and C contacts available
- DC coils to 120 VDC
- Life expectancy to 10 million operations
- Class B insulation for high temperature applications
- Class F (155°C) version available
- Available with an epoxy seal for automatic wave soldering and immersion cleaning
