Manufacturer Part #

1825010-1

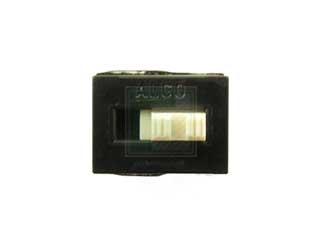

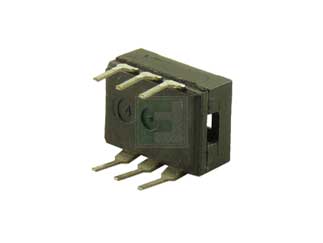

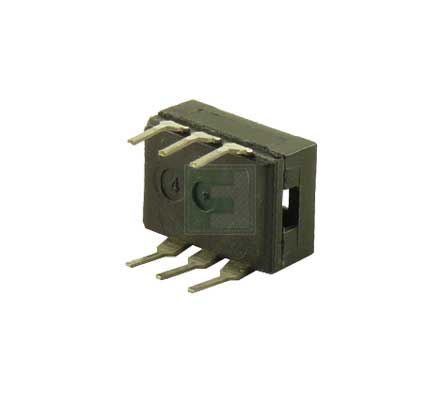

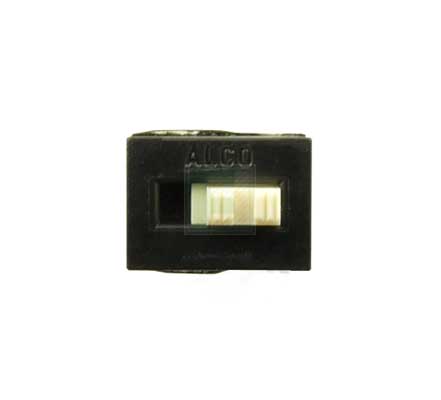

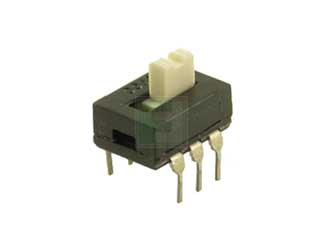

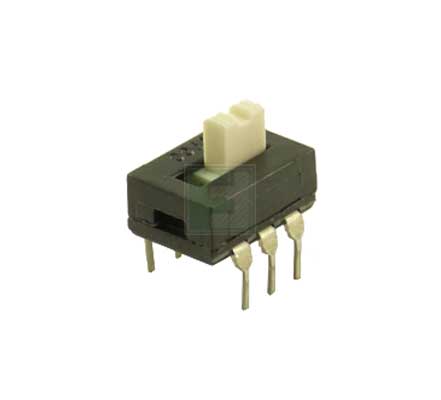

2 Position DPDT Extended Top Actuator Through Hole Vertical Mount Slide Switch

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 1825010-1 - Technical Attributes
Attributes Table
Switch Operation: On-On
Circuitry: DPDT
Contact Current-Max: 0.3A
Contact Material: Silver
Termination Style: PCB
Mounting Method: Through Hole
Features & Applications

The 1825010-1 ASF Series is a 2 Position DPDT Extended Top Actuator Through Hole Vertical Mount Slide Switch.

This Switches provide a reliable, low-cost means of switching for printed circuit boards. The open bottom design of the switch permits the contacts to act directly on the traces. The mounting of the switch on the circuit side of the board increases the flexibility of packaging.

Features:

  • Configuration (Pole-Throw) = Double Pole - Double Throw
  • Actuator Style = Extended, Top
  • Series = ASE/F
  • Mount Angle = Vertical
  • Terminal Configuration = Standard
  • Grade=Telecom
  • Termination Type = PC
  • Contact Rating = 300mA @ 115 VAC
  • Number of Positions = 2
  • Actuator Color = Natural
  • Mount Style = Through-Hole
  • Switch Style = Auto-insertable
  • PCB Tail Length (mm [in]) = 4.06 [0.160]
  • Actuator Material = Polyester
  • Contact Plating = Silver
  • Contact Base Material = Copper Alloy

Applications:

  • Electronic games
  • Computers
  • Business machines
  • Radios and TV's
  • Thermostats
  • Telephone equipment
