TE Connectivity | 1658655-1

Manufacturer Part #

1658655-1

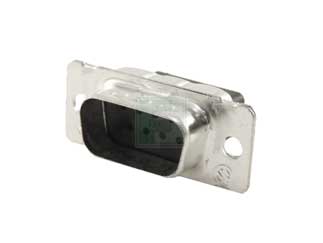

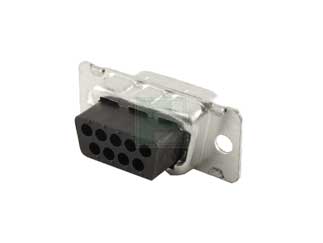

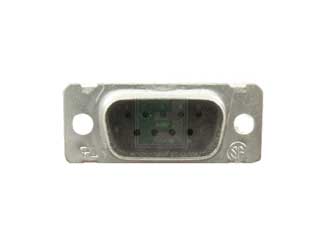

HDP20 Series 9 Position Shielding Hardware Plug Metal Kit D-Sub

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 1658655-1 - Technical Attributes
Attributes Table
Style/Orientation: Standard Cable Plug
No of Positions: 9
Termination: Crimp Snap
Material: Front Metal
Mounting Method: Through Hole
Features & Applications
The 1658655-1 is a part of HDP20 Series 9 Position Shielding Hardware Plug Metal Kit D-Sub. Used for the application of AMPLIMITE HDP-20 and Economy Crimp Snap Subminiature D Commercial Connectors with all-plastic contact retention.

These commercial connectors are available with or without shielding or shielding enclosure kits.

Product Features:

  • Product Type = Connector
  • Product Series = HDP-20 (Crimp Snap)
  • Mating Connector Lock = With
  • Mating Connector Lock Type = Jackscrews
  • Shell Size = 1
  • Shell Type = Full Metal Shell
  • Grounding Indents = Without
  • Grade = Standard
  • Color = Black
  • Number of Positions = 9
  • Pre-Assembled = No
  • Cable Insulation Diameter (mm [in]) = 4.83 – 9.53 [0.190 – 0.375]

Mating Products:

  • 5748536-1
  • 205203-8
  • 1658654-1
  • 1658646-1
  • 1658643-1



Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
15 Weeks
Minimum Order:
200
Multiple Of:
100
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,834.00
USD
Quantity
Unit Price
100+
$9.17
