Keystone | 1415-1

Manufacturer Part #

1415-1

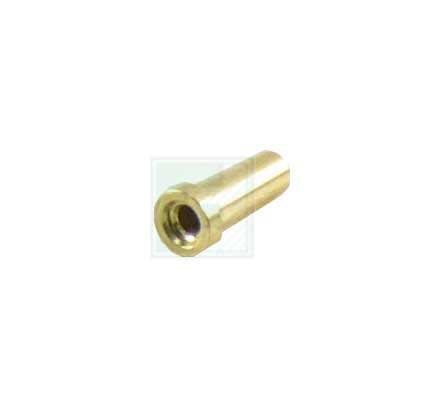

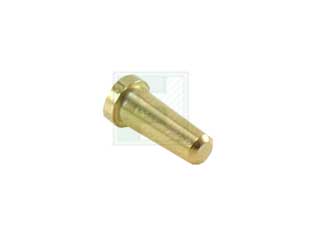

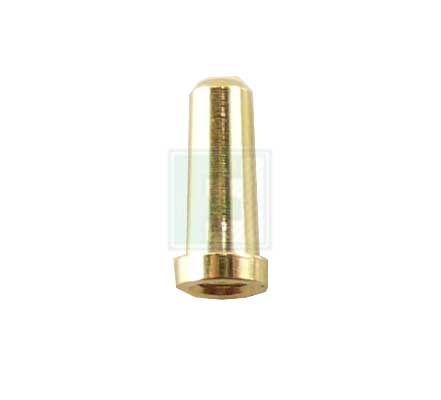

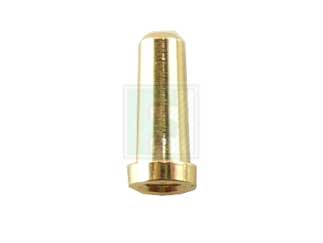

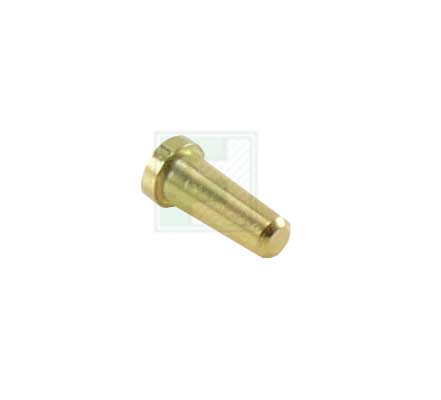

1415-1 Series Gold Straight Taper Fit Receptacle Micro Jack

ECAD Model:
Mfr. Name: Keystone
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Keystone 1415-1 - Technical Attributes
Attributes Table
Type: Micro Pin
Style/Orientation: Straight Socket/Receptacle
No of Positions: 1
Gender: Pin
Termination: Press-fit
Features & Applications

The 1415-1 is a Gold .055 inch Diameter Solder Mount Micro Jack .

Product Specification:

  • Space saving design for high density packaging
  • Beryllium Copper multi-spring contact maintains retention after multiple insertions
  • Ideal for mounting transistors, resistors, diodes, IC’s and similar miniature components
  • Custom micro jacks manufactures
  • Other platings available
  • Body: Brass, ASTM-B16
  • Spring: Beryllium Copper
  • Gold Plating : .000010 per MIL-G-45204

View the Complete Family of Micro Jack

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
10,988
Minimum Order:
5000
Multiple Of:
5000
Total
$2,125.00
USD
Quantity
Unit Price
5,000+
$0.425
