Manufacturer Part #
1-640517-0

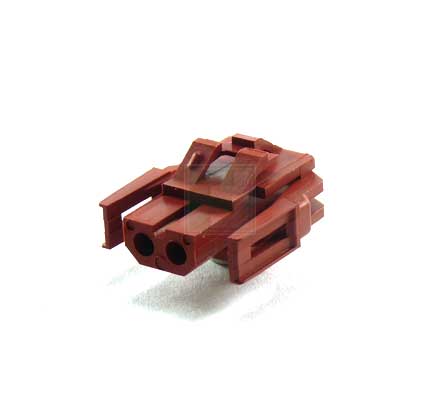

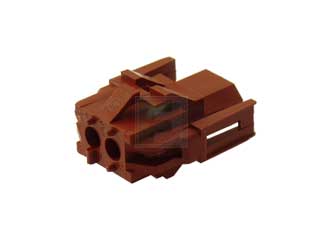

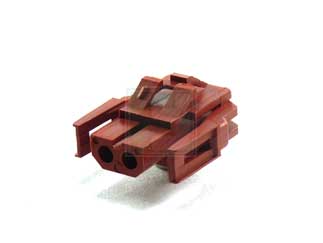

2 Position Crimp Terminal Positive Lock Plug Housing Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | 2221 | ||||||||||
TE Connectivity 1-640517-0 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-640517-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/1-640517-0-te-connectivity-4815486
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-640517-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/1-640517-0-te-connectivity-4815486
TE Connectivity 1-640517-0 - Technical Attributes
| No of Positions: | 2 |
| No of Rows: | 1 |
| Contact Termination: | Crimp Terminal |
| Pitch: | 4.2 mm |
| Style/Orientation: | Plug Housing |
| Termination: | Crimp |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 250V |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Material: | Nylon |
| Gender: | Female |
| Type: | Plug |
| Mating Type: | Positive Lock |
| Color: | Red |
| Insulation Resistance: | 1500MΩ |
Features & Applications
The 1-640517-0 is a 2 Position Crimp Terminal Positive Lock Receptacle Housing Connector These AMP Soft Shell Pin and Socket connectors provide a highly reliable and economic means of grouping multiple-lead connections
They also offer worldwide application approval because of their reliability and economy. Electrical functions have increased in complexity and new designs continually call for the maximum use of space. The Soft Shell Pin and Socket family of connectors offers the design and features to answer these modern industry requirements.
Product Features:
- Product Type = Connector
- Connector Type = Housing
- Strain Relief = Without
- PCB Mount Alignment = Without
- Shrouded = Yes
- Sealed = No
- Shape = Rectangular
- Panel Mount Retention = Without
- Mating Retention Type = Positive Lock
- Hot Pluggable = No
- Operating Voltage (VAC) = 250
- Number of Positions = 2
- Number of Rows = 1
- Number of Columns = 2
- Mating Retention = With
- Centerline (mm [in]) = 4.19 [0.1649]
- Contact Type = Pin
- Connector Style = Receptacle
- Housing Color = Brick Red
- Mating Alignment = With
- Mating Alignment Type = Polarization
- UL Flammability Rating = UL 94V-0
Available Packaging
Package Qty:
1 per Box
