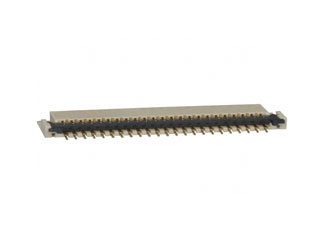

Hirose Electric | FH23-45S-0.3SHW(05)

Manufacturer Part #

FH23-45S-0.3SHW(05)

FH23 Series 45 Position 0.3 mm Pitch ZIF Flip Lock Right Angle Connector

ECAD Model:
Mfr. Name: Hirose Electric
Standard Pkg:
Product Variant Information section
Date Code: 2509
Product Specification Section
Hirose Electric FH23-45S-0.3SHW(05) - Technical Attributes
Attributes Table
Flat Flex Type: FPC
No of Positions: 45
Pitch: 0.3 mm
Height - Max: 1.25mm
Style/Orientation: Right Angle Socket/Receptacle
Termination: Solder
Locking Feature: Flip Lock
FFC, FCB Thickness: 0.2 mm
Mounting Method: PCB Mount
Pricing Section
Global Stock:
2,500
USA:
2,500
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
14 Weeks
Minimum Order:
2500
Multiple Of:
2500
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$3,150.00
USD
Quantity
Unit Price
2,500+
$1.26
Product Variant Information section
