Name: TE Connectivity 5555799-1
Brand: TE Connectivity
SKU: 3063781
Price: 1.29 USD
Availability: InStock

text.skipToContent text.skipToNavigation

- Region & Currency
- Americas
  - Other Currencies
  - CAD ($)
  - USD ($)
- Asia Pacific
  - Other Currencies
  - AUD ($)
  - CNY (¥)
  - HKD ($)
  - NZD ($)
  - SGD ($)
  - USD ($)
- Europe, Middle East, Africa
  - Other Currencies
  - CHF (CHF)
  - CZK (Kč)
  - DKK (kr)
  - USD ($)
You are changing the region you shop from. This may affect price, shipping options and product availability. Items in your current Cart will not be transferred.

You are changing currency. This may affect price, shipping options and product availability. Items in your current Cart will not be transferred.
1 (800) 675-1619

Orders shipping outside of United States will be on hold while the company evaluates tariff impacts.
Please contact your salesperson for assistance.

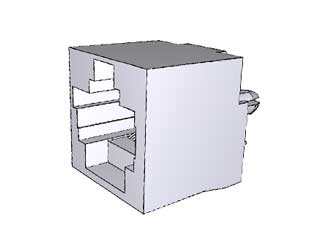

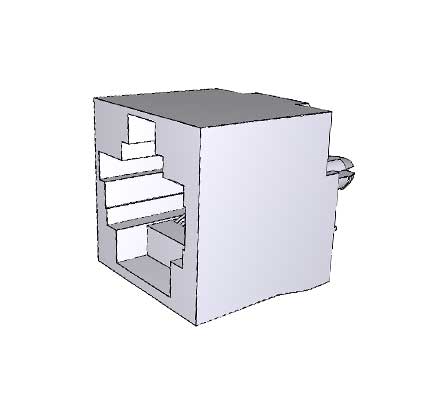

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

5555799-1

8 Position Single Port Straight Through Hole RJ45 Modular Jack

5555799-1 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 126 per Tray Mounting Method: Through Hole
Date Code:	2213

TE Connectivity 5555799-1 - Technical Attributes

Style:	Standard Jack
No of Positions:	8
Mounting Method:	Through Hole

Features & Applications

Modular Jacks consist of single or multi-port, stacked, high performance, jacks with LEDs, surface or PCB mount and shielded and unshielded varieties. They offer compact size, high reliability and meet FCC Rules and Regulations, Part 68. The high performance category 5 jacks conform to TIA/EIA-568A requirements. The housing materials are available in polyester for wave solder applications and high temperature Nylon, PCT, or SPS for IR reflow applications. All shields consist of copper alloy base metal with tin-lead plating over copper underplate. All contacts are overall nickel plated phosphor bronze, with selectively plated gold in the contact area, and tin-lead in the solder area.

Single Port Modular Jacks are available in side or top entry and shielded or unshielded. The side entry additionally comes in a variety of heights from 17.4mm to 11.5mm. They are designed for direct mounting on pc boards and ease of soldering and board cleaning. The shielded modular jacks are available with and without panel grounds.

5555799-1 is a top entry, thru hole, eight position, unshielded housing with eight contacts loaded. No LEDs, panel stops or pc grounding option. Meets Cat 3 performance requirements.

Mating options can also be found in the Related Products Tab
