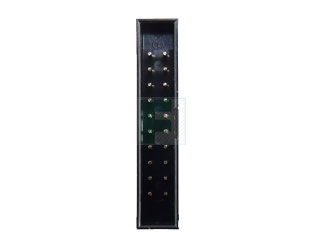

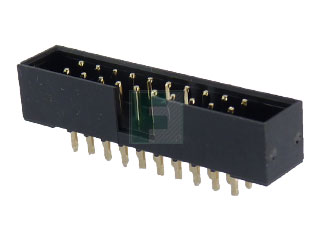

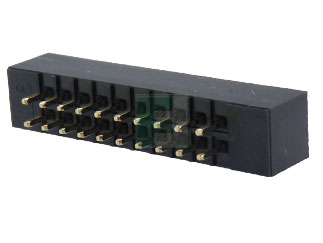

Sullins | SBH21-NBPN-D10-ST-BK

Manufacturer Part #

SBH21-NBPN-D10-ST-BK

20 Position Total Dual Row 2 mm Pitch Straight Male Shrouded Box Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins SBH21-NBPN-D10-ST-BK - Technical Attributes
Attributes Table
No of Positions: 10
Pitch: 2 mm
Style/Orientation: Straight Header/Plug
Termination: Solder
Type: Box Header
Features & Applications

The SBH21-NBPN-D10-ST-BK is a .079 inches Dual Row 2x10 Position (20 Pin) 5.6 mm Profile Straight Male Box Header.

Features:

  • Nylon 6T/Brass
  • Dual Readout
  • 20 total contacts
  • Straight
  • Black

Specifications:

  • Plating: Gold Flash Overall
  • Operating Temperature: -40°C to 85°C
  • Processing Temp: 230°C for 60 Seconds Max (260"C, 10 sec.)
  • UL Flammability Rating: 94V-0
  • Voltage Rating: 20 m OHMS Max
  • Current Rating: 2 AMP per contact
  • Voltage Drop: AC 500 V
  • Insulation Resistance: l000 MEGA OHMS

View the Complete Series of SBH21 Headers

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
54
Factory Lead Time:
8 Weeks
Minimum Order:
1000
Multiple Of:
1000
Total
$595.00
USD
Quantity
Unit Price
1,000
$0.595
2,000
$0.585
3,000+
$0.58
Product Variant Information section
Related Products

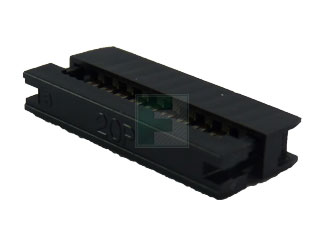

SFH21-PPPN-D10-ID-BK
SFH21-PPPN-D10-ID-BK
Sullins
20 Position Total Dual Row 2 mm Pitch Insulation Displacement Female Box Header
As low as: $0.625 (USD)

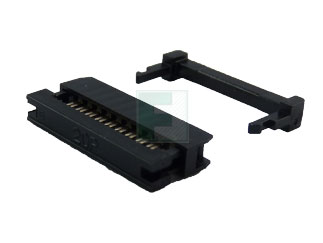

SFH213-PPPN-D10-ID-BK
