Manufacturer Part #

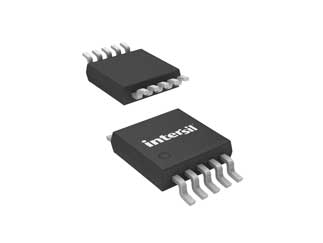

ISL22316WFU10Z
ISL22316 Series 128 Tap Non Volatile 50 kOhm Digital Potentiometer - MSOP-10
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Renesas | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:MSOP-10 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Renesas ISL22316WFU10Z - Product Specification
Shipping Information:
ECCN:
PCN Information:
This advisory is to inform you that Intersil has updated the minimum line quantity (MLQ) for the parts listed in this notice. These changes will affect all orders placed on the books on or after 3/1/2015 but will not affect any orders currently on the books or placed on the books prior to that date.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ISL22316WFU10Z&field4=Renesas&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--digital-potentiometers/isl22316wfu10z-renesas-4027804
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ISL22316WFU10Z&field4=Renesas&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--digital-potentiometers/isl22316wfu10z-renesas-4027804
Renesas ISL22316WFU10Z - Technical Attributes
| No of Positions: | 128 |
| No of Channels: | 1 |
| Interface: | I2C |
| Wiper Storage: | Non-Volatile |
| Resistance: | 10kΩ |
| Tolerance: | ±20% |
| Supply Voltage: | 2.7V to 5.5V |
| Package Style: | MSOP-10 |
| Mounting Method: | Surface Mount |
Features & Applications
The ISL22316WFU10Z is a single channel digitally controlled potentiometer with low power, available in 10 pin MSOP package.
This device integrates DCP and non-volatile memory on a monolithic CMOS integrated circuit .It is implemented with a combination of resistor elements and CMOS switches. The position of the wipers are controlled by the user through the I2C bus interface.
Features:
- 128 resistor taps
- I2C serial interface
- Two address pins, up to four devices/bus
- Non-volatile storage of wiper position
- Wiper resistance: 70 Ω typical @ VCC = 3.3 V
- Shutdown mode
- Shutdown current 5μA max
- Power supply: 2.7 V to 5.5 V
- 10 kΩ total resistance
- High reliability
- Endurance: 1,000,000 data changes per bit per register
- Register data retention: 50 years @ T ≤ +55 °C
- 10 Ld MSOP package
- Pb-free (RoHS compliant)
Applications:
- Control
- Parameter adjustments
Available Packaging
Package Qty:
50 per Tube
Package Style:
MSOP-10
Mounting Method:
Surface Mount
