L6207D

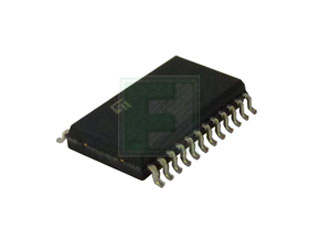

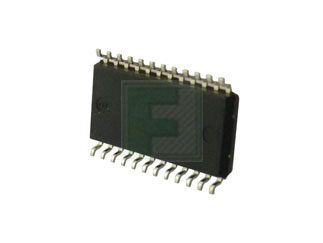

L6207 Series Dual Full Bridge 52 V 5.6 A DMOS Driver SMT - SOIC-24
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:32 per Tube Package Style:SOIC-24 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics L6207D - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=L6207D&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/l6207d-stmicroelectronics-4143145
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=L6207D&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/l6207d-stmicroelectronics-4143145
STMicroelectronics L6207D - Technical Attributes
Attributes Table
| Configuration: | Full Bridge |
| No of Outputs: | Quad |
| On-state Resistance-Max: | 0.4Ω |
| Output Current: | 2.8A |
| Peak Output Current: | 5.6A |
| Supply Voltage-Max: | 52V |
| Quiescent Current: | 5mA |
| Turn-off Delay Time: | 600ns |
| Turn-on Delay Time: | 1.6µs |
| Rise Time: | 250ns |
| Fall Time: | 250ns |
| Operating Temp Range: | -25°C to +125°C |
| Package Style: | SOIC-24 |
| Mounting Method: | Surface Mount |
Features & Applications
The L6207D is a dual DMOS full bridge driver with PWM current controller, available in surface mount SOIC-24 package.
This device combines the isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip.
Features:
- Operating supply voltage from 8 to 52 V
- 5.6 A output peak current (2.8 A DC)
- RDS(ON) 0.3 Ω typ. value @ Tj=25°C
- Operating frequency upto 100 kHz
- Non dissipative overcurrent protection
- Dual independent constant tOFF PWM current controllers
- Slow decay synchronous rectification
- Cross conduction protection
- Thermal shutdown
- Under voltage lockout
- Integrated fast free wheeling diodes
Applications:
- Bipolar stepper motor
- Dual DC motor
